Janisol Arte 2.0 door

Janisol Arte 2.0 door

Extremely slim face widths and outstanding performance values are the hallmarks of the Janisol Arte 2.0 thermally separated steel system, which has previously been used to manufacture windows and fixed glazing. Now, the Arte family has been expanded: you can now plan with CE-certified doors for the exterior and interior or use french windows.

  • Design and functionality
  • Dimensions
  • Range of applications
  • Janisol Arte family
  • Materials
  • References
  • Performance values
  • Contact

Janisol Arte 2.0 Webinar

Register now to receive the recording of the webinar:

We would like to send you relevant information which are of interest to you. That's why we would like to request your consent. You find all information about how we we use and process personal information in our privacy policy.

Maximum flexibility –
maximum design freedom

  • single- and double-leaf doors that open inwards and outwards
  • very slim 3D screw-on hinges made from stainless steel
  • various materials
  • designer glazing beads in wet and dry glazing
  • various lock designs including electric strike

Compatible with the Arte 2.0 and Arte 66 window systems

Barrier-free threshold designs

Excellent heat and sound insulation

Processing –
Adjustability contact pressure

Contact pressure values
17.25 A 1
18.25 A 2*
19.25 B 1
20.25 B 2

* Basic setting

One striking plate – four adjustment options

Due to its material properties, steel has physical production tolerances. These production tolerances require that processers must have a high level of technical skills if they produce doors, windows or facades, as some of these production tolerances need to be adapted to ensure a visually perfect appearance.

In the case of doors, the production tolerances can result in the mortise lock in the leaf sometimes not engaging with the strike plate in the frame optimally, despite precise workmanship. This means that laborious and costly reworking needs to be carried out. With the new striking plate 556.411, Jansen has succeeded in saving the processor in having to carry out regrinding work in this instance – the striking plate and the internal fastening bolt can each be turned 180° with only a few handles. By eccentrically arranging the openings, this can compensate for an offset of up to 3 mm.

This also ensure that readjusting doors is easier: the same striking plate can be turned 180° and reinstalled. As a result, there is no need for any manual reworking or to use a new strike plate.

Slim. Slimmer.

With a construction depth of 60 mm, the face width of the leaf and frame is just 45 mm, adding up to a slim 60 mm in the face plate.

60

mm construction depth

45

mm face plate

Maximum dimensions.

Outside and inside doors in element sizes of up to 1250 mm width x 2500 mm height per leaf (max. 150 kg leaf weight)

125

cm width

150

kg leaf weight

250

cm height

Wide range of products –
wide range of applications

Janisol Arte 2.0 enables the manufacture of inward or outward-opening doors with and without a fixed side section and/or skylight.

Structures with segmented or round arches or curved fixed glazing are also feasible, as are sheet metal clad doors and fixed glazing. There is a choice of a mortise lock with or without top locking or multipoint lock options.

  • Type overview
  • Fitting selection
  • Threshold variants
  • Glazing bead variants
  • Profile range

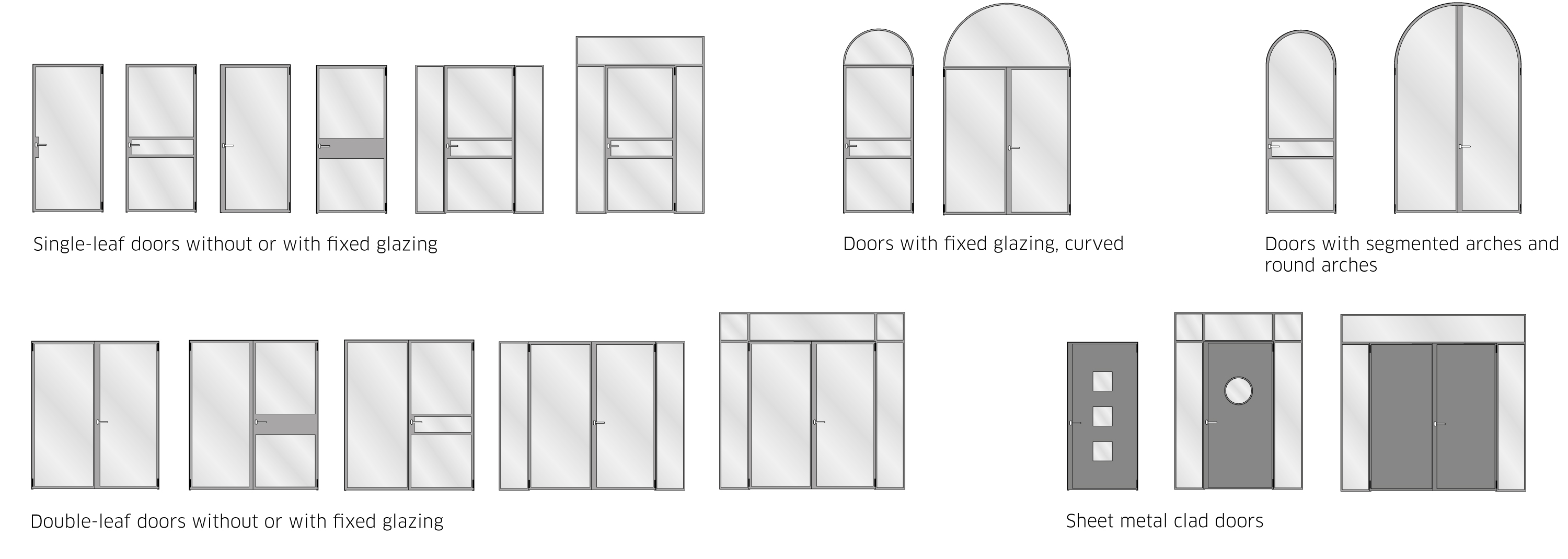

Type overview

Fitting selection

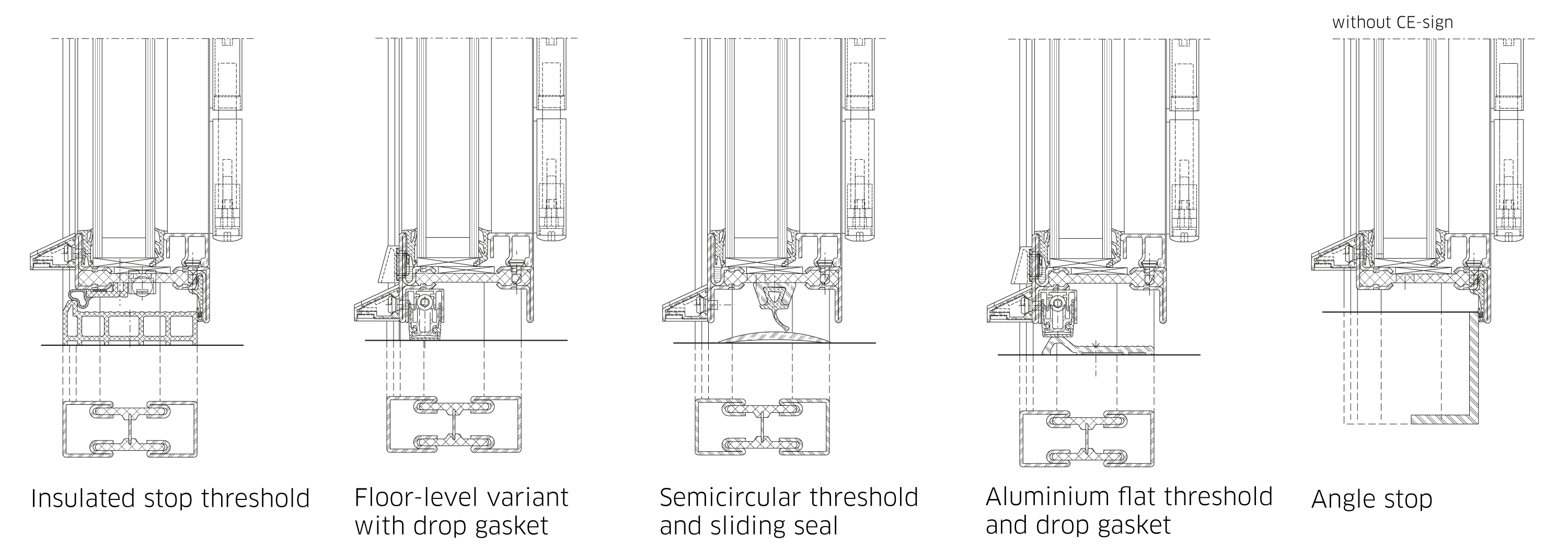

Threshold variants

Glazing bead variants

Profile range

The Arte system family –
for a consistent range

With the Arte 2.0 door, Jansen completes the Arte family. There you will find innovations that allow you to achieve an appealing look throughout with one series: for example, the Arte 2.0 window series has been expanded to include the window door and the fixed window. Also available are the Jansen Art'15 door system and the Jansen Art'System window system.

Janisol Arte 2.0 door

Janisol Arte 2.0 door

Doors made of steel, stainless steel and Corten steel with narrow face widths

Janisol Arte 2.0 window

Janisol Arte 2.0 window

Slender steel window system for matching the existing style in refurbishments

Janisol Arte 2.0 sliding door

Janisol Arte 2.0 sliding door

Proven system for large openings

Janisol Arte 66

Janisol Arte 66

Slim tilt and turn windows made from steel profiles

Three materials –
more variety

Zahnarztpraxis Fischer-Brocks - Jansen AG

© Cornelia Suhan

Zahnarztpraxis Fischer-Brocks - Jansen AG

© Cornelia Suhan

Hof Souburgh - Jansen AG

© Lisette van de Pavoordt / Fotografie

Trulli - Jansen AG

© Claudio Palma

Trulli - Jansen AG

© Claudio Palma

Zahnarztpraxis Fischer-Brocks - Jansen AG

© Cornelia Suhan

Trulli - Jansen AG

© Claudio Palma

Zahnarztpraxis Fischer-Brocks - Jansen AG

© Cornelia Suhan

Trulli - Jansen AG

© Claudio Palma

Trulli - Jansen AG

© Claudio Palma

Barn - Jansen AG

© LUCID

Barn - Jansen AG

© LUCID

Barn - Jansen AG

© LUCID

Highest performance values –
for a long service life

The Janisol Arte 2.0 doors have achieved CE classification in accordance with product standard EN 14351-1 with outstanding performance values. It also boasts sound insulation values of up to 45 dB, thus providing protection against unwanted noise pollution.

The materials used – steel, stainless steel and Corten steel – are extremely robust. This results in stable, low-maintenance constructions with long service lives.

The new additions to the system family are also compatible with the Arte 2.0 and Arte 66 window systems. Jansen supports architecture and planning offices with digital twins (BIM models) for all profile systems.


Download our product as BIM model

Tests Data
Min. face width 45 mm (frame and leaf)
Frame Uf value > 1.9 W/M2 K
Max. glass/panel thicknesses 47 mm
Sound insulation up to 45 dB
Air permeability Class 4
Tightness against heavy rain 8A
Wind load resistance Class C3/B3A3
Durability Class 7
Impact resistance Class 4
Operating forces Class 2
CE label yes
BIM model available
