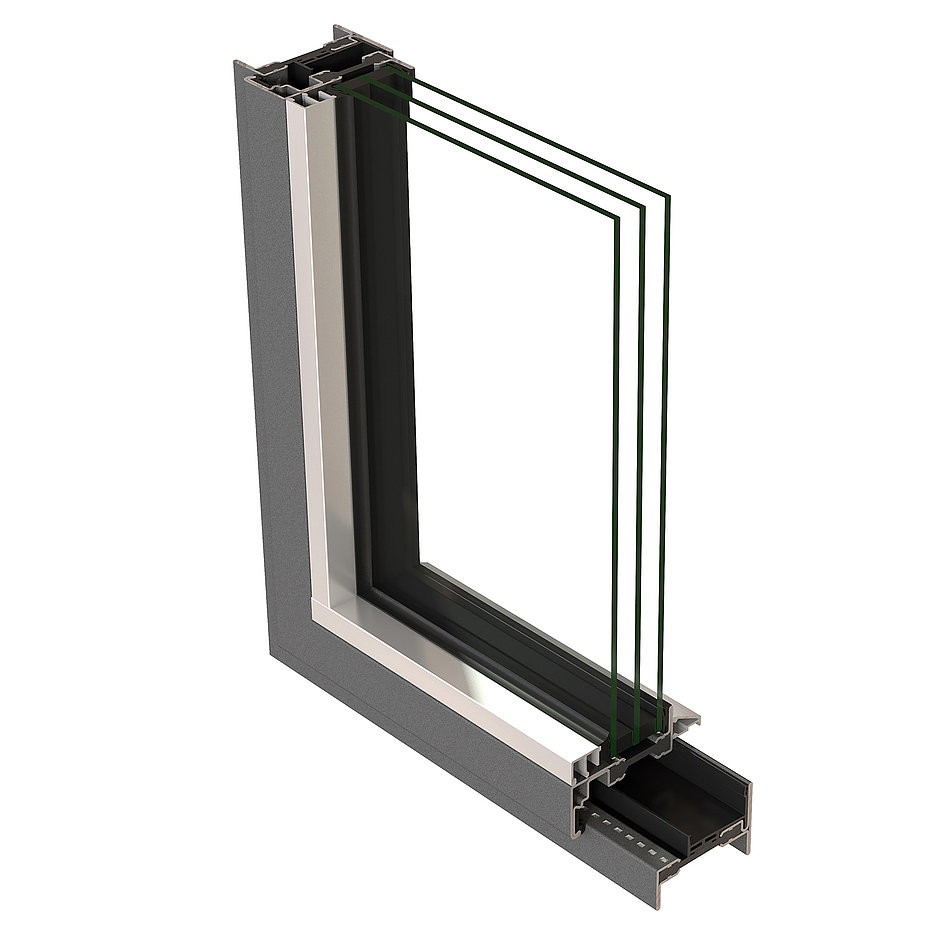

Janisol Arte 66

Slim tilt and turn windows made from steel profiles

With Janisol Arte 66, Jansen is expanding its range of systems to include an attractive variation. The basic depth of 66 mm enables the use of stronger glass, with a vent height of up to 2300 mm. This makes it possible to have the turn/tilt opening type, even with the special requirements of listed buildings for narrow frames. With the concealed fittings, they meet architects' and developers' demands for a uniform design and clear lines which do not allow any visual interruption. The Euro grooves make it easier for fabricators to install the fittings, while the new glazing bead system facilitates installation of the panes. Fabrication with push-in gasket or dry glazing takes place in the usual way, as with the Janisol and Janisol Arte 2.0 steel profiles – this ensures a high level of process reliability.

Benefits

  • Modern opening type
  • Compatible with Janisol Arte 2.0
  • Concealed fitting
  • Free choice of handles
  • Product details
  • Section detail
  • BIM Models
  • Video

Field of application

  • Renovation and new construction
  • Non-load-bearing partition or as a replacement wall

Materials / surface finish

  • Strip galvanised steel
  • Corten

Window types / opening types

  • Side-hung and turn/tilt windows as well as window with meeting stile, single and double-vent, inward-opening
  • Inward-opening bottom-hung window
    • Spring catch
    • Toplight opener
    • Motorised
    • With fittings
  • Fixed glazing

Special technical features

  • Basic depth of 66 mm
  • 70 mm vent

Very narrow face widths

  • Fixed glazing 30 mm
  • Window vent 28 mm
  • Window meeting stile design 76 mm

  • Easy to fabricate
  • Window sizes up to 1400 x 2300 mm
  • Glass thicknesses of 20 to 44 mm
  • Max. weight 180 kg
  • New glazing beads with new fixing stud

Test certificates
CE marking in accordance with product standard EN 14351-1

  • Resistance to wind load C5 (2000 Pa)
  • Watertightness up to class 9A (600 Pa)
  • Sound reduction up to 45 dB
  • Thermal transmittance of Uf from 1.9 W/m2K
  • Air permeability class 4 (600 Pa)
  • Load-bearing capacity of safety devices met
  • Mechanical strength class 4
  • Impact resistance class 4
  • Prefabricated glazing suitable for safety barrier loading DIN 18008-4 met
Jansen AG - Section detail Arte 66

Janisol Arte 66

Downloads

  • Brochures & information
    Janisol Arte 66 (5 MB)
  • Brochures & information
    Thermally insulated doors and windows (15 MB)

Jansen Docu Center

  • Sales range
    Janisol Arte 66
  • Processing and assembly
    Janisol Arte 66
  • Architecture catalogue
    Janisol Arte 66
  • Gama de producto
    Janisol Arte 66 (ES)
  • Fabricación y montaje
    Janisol Arte 66 (ES)
  • Gama de producto

Contact partner windows

Do you have any questions or suggestions? Our customer service advisers are always available to assist you.

Worldwide sales network

References

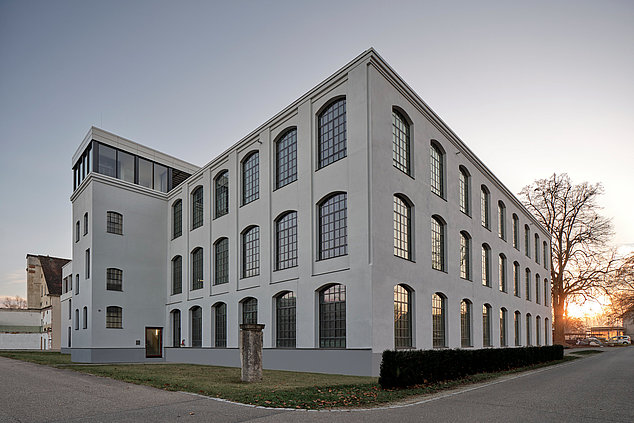

Neue Spinnerei

DE-Wangen im Allgäu
Steel Systems

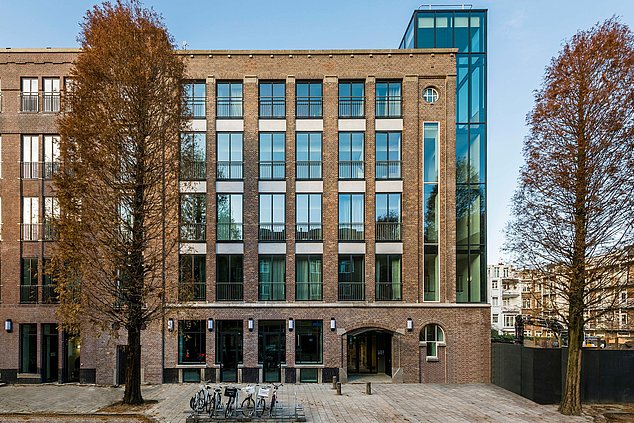

Karel Du Jardinstraat
