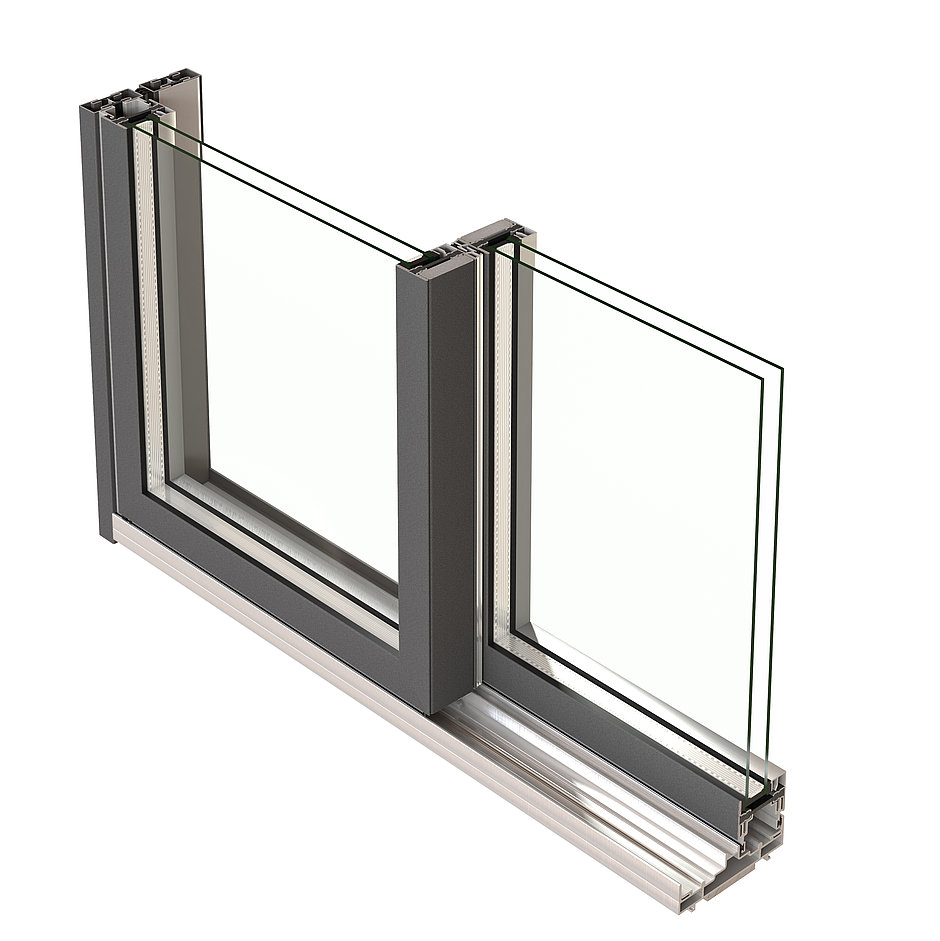

Janisol Arte 2.0 Sliding door

Using the extremely slimline steel profile system Janisol Arte, extremely large sliding doors with slim face widths and high stability can be prepared. Originally developed by Jansen for the reconstruction of historic windows, Janisol Arte now offers architects and planners the possibility to divide large glass fronts in new buildings.

  • Product details
  • Section detail
  • BIM Models

  • Element sizes of up to 3000 × 2500 mm (W×H)
  • Max. weight 150 kg/leaf
  • Insulating glass from 20 to 34 mm
  • UW value of 1.5 W/m2K
  • Welded steel profile half shells in combination with glass-fibre reinforced high-performance plastics (100% recyclable) produce particularly stable frames
  • Profile face widths of only 40 mm ensure more light
  • CE marking in accordance with EN 14351-1
  • Profile bonding technology tested in accordance with EN 14024
  • Sound insulation up to 41 dB

Materials/surface finishes

  •  Strip-galvanised steel, suitable for powder coating or stove-enamelling
  •  Stainless steel 1.4401
  •  Corten
Steel Systems
Janisol Arte 2.0 Sliding door

Downloads

  • Brochures & information
    Thermally insulated doors and windows (23 MB)

Jansen Docu Center

  • Sales range
    Janisol Arte 2.0 sliding doors
  • Installation and assembly
    Janisol Arte 2.0 sliding doors

Contact

Do you have any questions about your next project? Need advice? Our experts are here to help!
Let us know how we can assist.

Contact partner

References

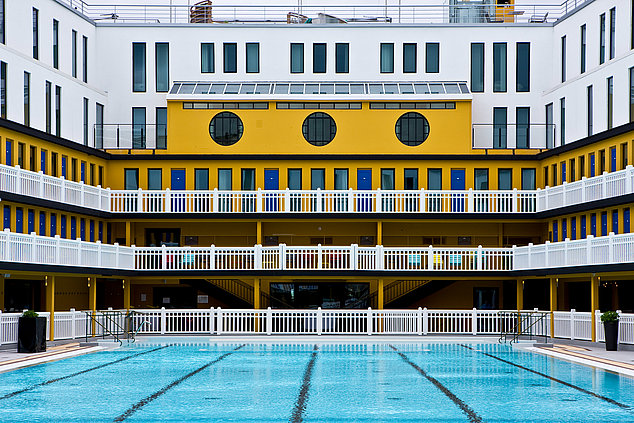

Piscine Molitor - Jansen AG
