Olivia Star Business Center

PL-Danzig

Soping high-rise building façade on the sea line

A high-rise building façade on the sea line must meet the most stringent wind load requirements. In spite of this, the architects doubled the size of the glass panels on the top floors of the building, which is also inclined inwards at this point. The VISS façade enabled them keep the number of mullions to a minimum.

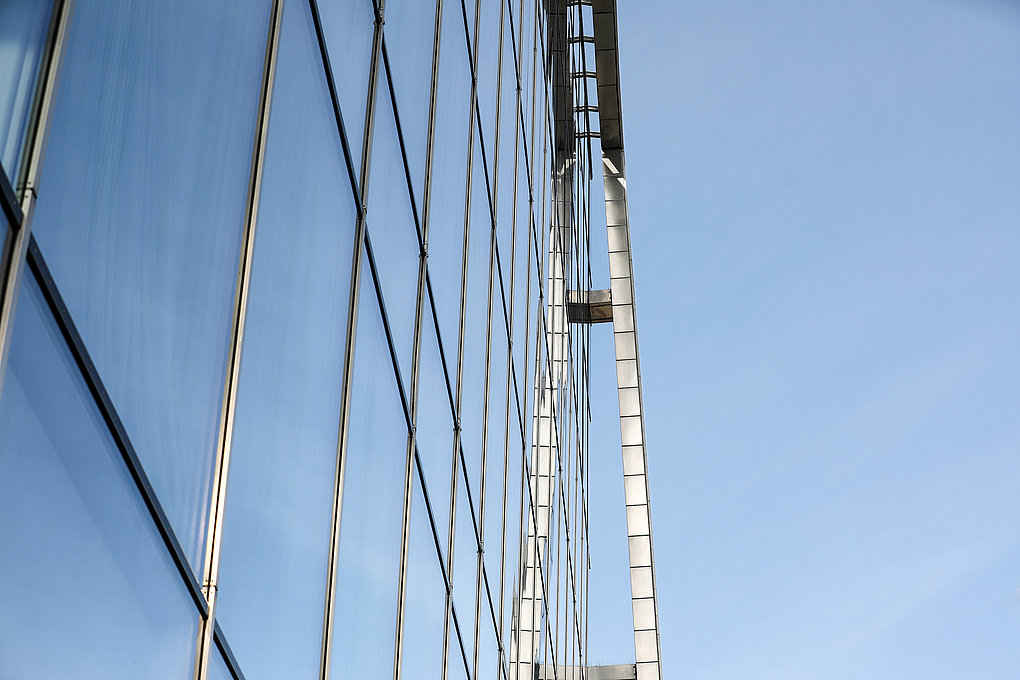

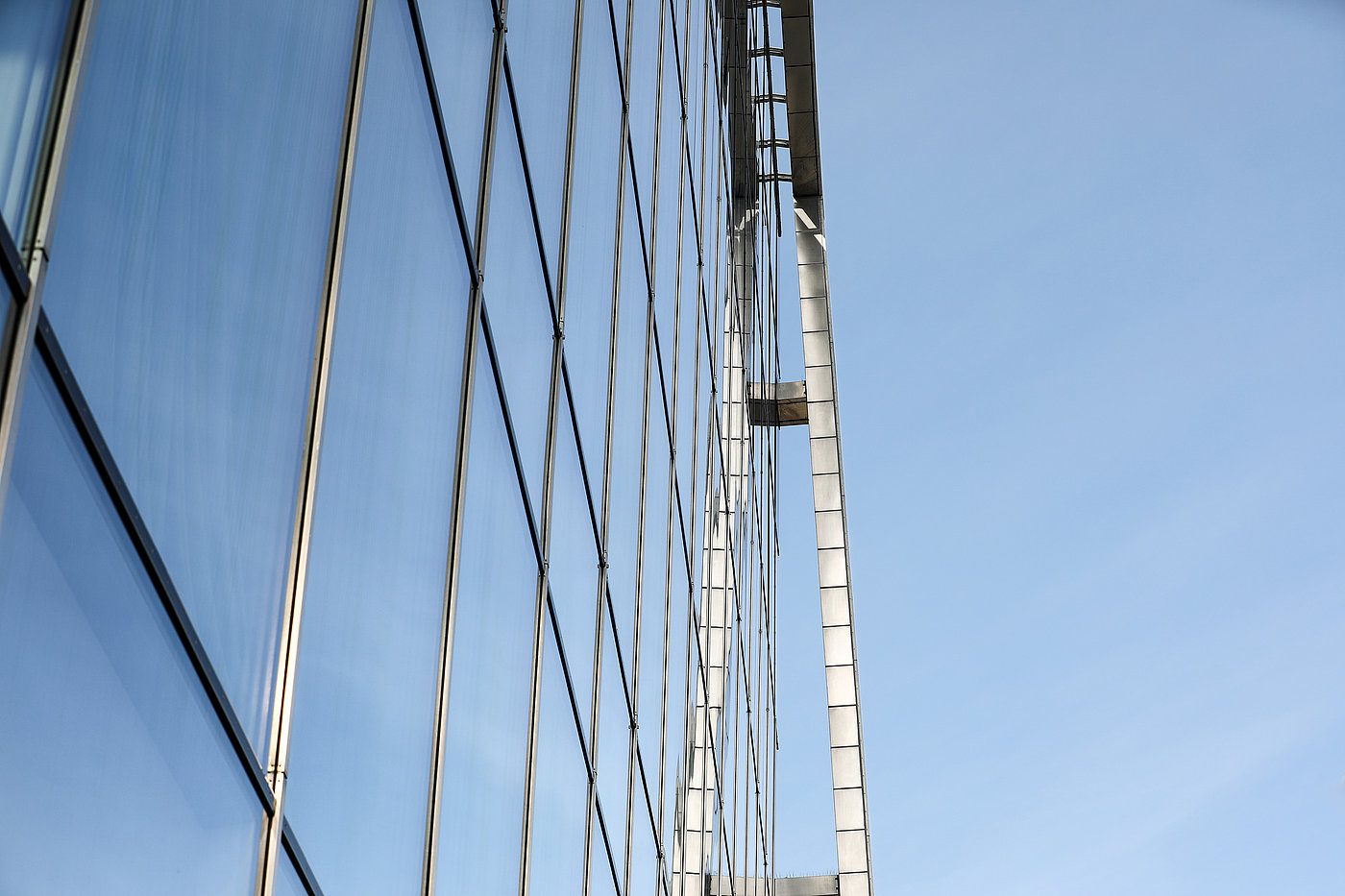

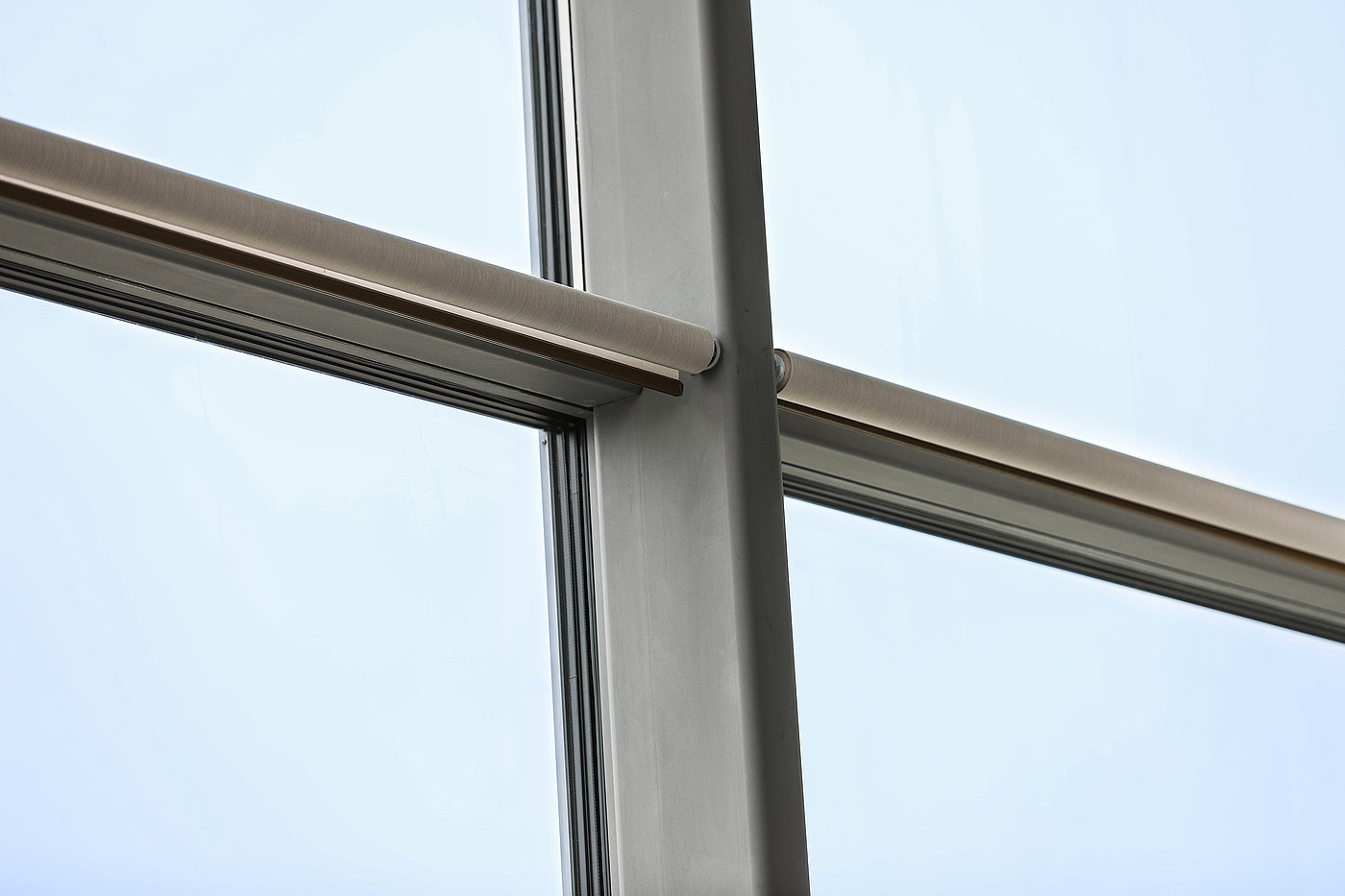

The Gdynia-based architecture firm, BJK Architekci, chose the Jansen VISS façade system to create the mullion-transom structure, which is inclined twelve degrees inwards. Using the heavy-duty steel system meant that the glass panels were exactly double the width of the aluminium profiles of the office façades underneath. In other words, the VISS façade has reduced the number of mullions that disrupt the view to a minimum. As the building is located on the sea line (i.e. as if it were positioned on the open sea), wind pressure and suction forces of approximately 4000 Pascals were taken into account. This is why the façade constructor used stainless steel connectors from the VISS Fire steel profile system.
