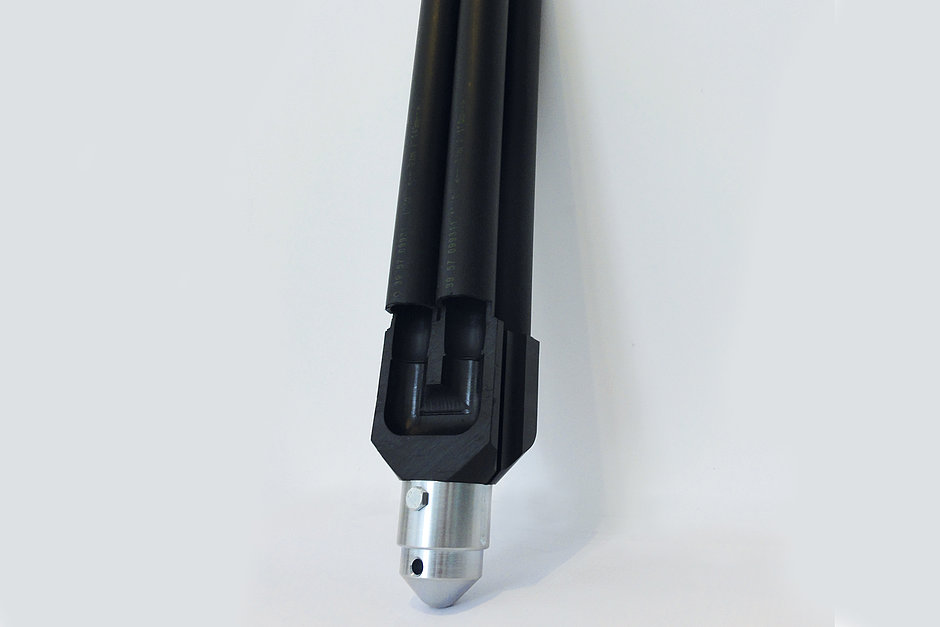

JANSEN vertex special ground source heat loop

Today, the ground source heat loop is the most versatile method used to obtain heat and cooling from the ground. The JANSEN vertex ground source heat loop is particularly suitable for hot water preparation and for heating and cooling buildings.

With the vertex special ground source heat loop, Jansen offers a system for special requirements: deep bores, larger or special pipe dimensions, and even custom fabrications. In particular, the JANSEN vertex with a diameter or 50 mm impresses with its unique hydraulics, high resistance to pressure and extreme robustness for hard construction site conditions.

Advantages

  • Highest efficiency
  • Heating and cooling in one system
  • Very little space required
  • Low operating costs
  • Does not produce any noise emissions
  • Low hydraulic pressure
  • Product details
  • Delivery programme
  • Nominal pressure loss per m

Material

  • PE 100 RC (resistant to cracking) or PE 100 RT (high-temperature resistant)
  • PERT (High-temperature ground loops)

Applications

  • Heating
  • Free cooling
  • Air-conditioning
  • Hot water production
  • Keeping open areas free of snow and ice

Dimensions
dn 25, 32, 40 und 50 mm

Available options

  • Various special lengths from 50 to 450 m
  • Pressure ratings from PN10 to PN30
  • Special solutions on request

Delivery form
1 special circuit per pallet (➔2 pallets per heat loop)


Minimum bending radius for dimension 50 mm
1000 mm @ 20° C
1750 mm @ 10° C
2500 mm @ 0° C

Pressure ratings
PN10, PN16, PN20, PN25, PN30

Safety factor
1.25

Volume per tube meter
5.23 l/m 4.73 l/m 4.12 l/m

Approvals / certifications

  • SKZ Guideline HR 3.26
  • EN 10204-3.1
  • Material as per PAS 1075

Associated products

  • Injection pipes PE, 25 and 32 mm
  • Ground loop weights
  • Distribution systems
  • Pipe connectors
  • Fittings and electrically welded sleeves

JANSEN vertex special ground source heat loops in special dimensions and lengths are available on request. Careful packing protects the heat loop against transport damage.

Type Dimension Length Filling volume per m heat loop
JANSEN vertex Single-U 50 x 4.6 mm;
PN 16
250 to 300 m 5.231 l/m
JANSEN vertex Doppel-U 50 x 5.6 mm;
PN 20
250 to 350 m 4.73 l/m
JANSEN vertex Doppel-U 50 x 7.9 mm
PN 30
300 to 400 m 3.67 l/m
