VISS SG Facade

VISS SG is, architecturally, a very attractive all-glass facade. Based on the proven VISS system solution, VISS SG can be simply and efficiently designed and built as structural glazing to form a high-tech facade. Glazed panels of up to 2.5 x 5.0 m significantly enhance the transparency of the building envelope. With a variety of glass anchors it is possible to install double or triple glazed units up to 70 mm thick. Likewise, using VISS SG and the structural glazing method, it is very easy to construct glazed roofs. The Jansen VISS SG system can be readily combined with all VISS profiles with face widths of 50 and 60 mm, as well as with the VISS Basic solution, which can be mounted on any support. With steel as the construction material, the slender internal look is retained, while the large glazed areas create a generous sense of space. This results in a wide range of options with only a minimum of additional components.

  • Product details
  • Section detail
  • BIM Models

Materials / surface finish
Uncoated or strip-galvanised steel, suitable for powder coating or stove-enamelling

Support structures

  • VISS system profiles
  • Designer profiles (Linea, Personal profiles)

Construction types

  • Installation of double and triple glazing panels included in ETA and TRAV
  • Segmental glazing, concave and convex
  • Welded and/or push-fit construction
  • Mullion-mullion-transom construction
  • Mullion-transom-mullion construction

Equipment

  • Glass panels of up to 2.5 x 5.0 m – other dimensions are possible but must be detailed for each project
  • Insert windows and insert doors must be detailed specifically for each project

Special technical features

  • Face widths 50 and 60 mm
  • Installation depths 50 to 250 mm
  • Infill element thickness 30 to 70 mm
  • VISS Semi SG

Approvals

  • ETA 13/0015 European Technical Approval
  • Coefficient of thermal transmittance Uf > 0.84 W/m2K
  • Tightness against heavy rain up to class RE1200
  • Air permeability up to class AE
  • Resistance to wind load up to class 2 kN/m2
  • Impact resistance up to class E5/I5
  • Passed TRAV testing (Technical Regulations for Safety Barrier Glazing)

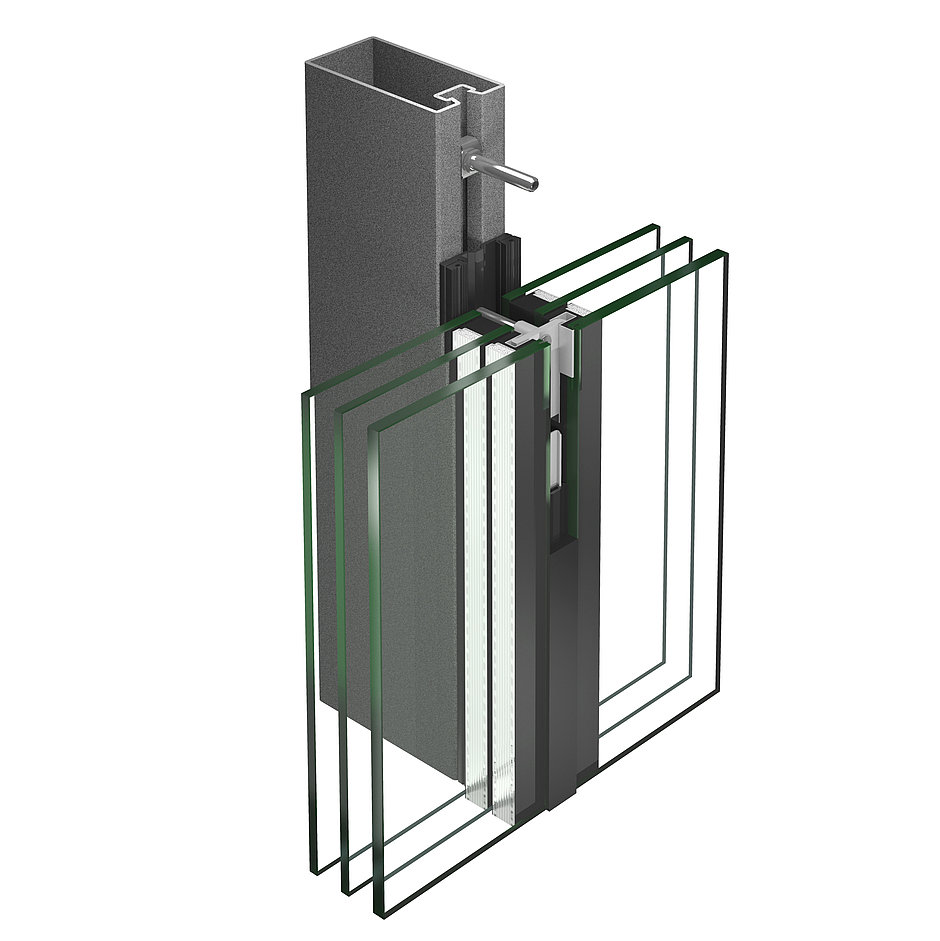

Jansen - Section detail VISS SG facade
Jansen - Section detail VISS SG facade
VISS SG Facade

Downloads

  • Brochures & information
    VISS SG contacts (138 KB)
  • Brochures & information
    Thermally insulated mullion-transom constructions (23 MB)

Jansen Docu Center

  • Sales range
    VISS SG / VISS Semi SG
  • Installation & assembly
    VISS SG
  • Installation & assembly
    VISS Semi SG horizontal
  • Installation & assembly
    VISS Semi SG vertical
  • Architecture catalogue
    VISS SG / VISS Semi SG
  • Architecture catalogue
    Completed projects

Contact

Do you have any questions about your next project? Need advice? Our experts are here to help!
Let us know how we can assist.

Contact partner

References

Technische Universität - Pulse - Jansen AG

Technical University – Pulse

NL-Delft
Casals Forum - Jansen AG

Casals Forum

DE-Kronberg
Futura One Taipeh - Jansen AG

Futura One

TW-Taipeh
Move - Jansen AG

MOVE

NL-Amsterdam
Storage area of Museum Boijmans van Beuningen - Jansen AG

Storage area of Museum Boijmans van Beuningen

NL-Rotterdam
Steel Systems

Futurium–House of the Future

DE-Berlin
Steel Systems

The Lighterman–King's Cross Pavilion

GB-London
Steel Systems

Juvelen

SE-Uppsala
Steel Systems

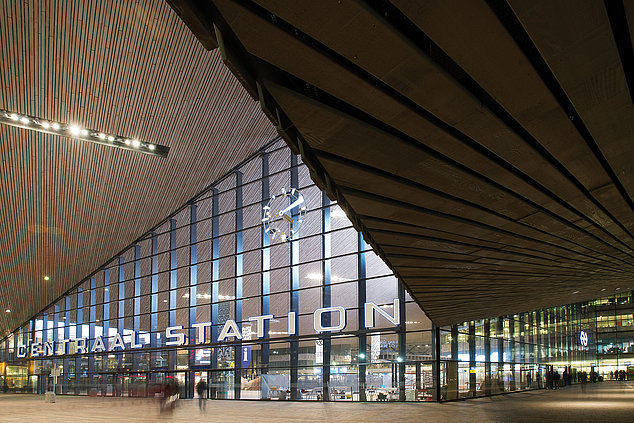

Central Station Rotterdam

NL-Rotterdam
Steel Systems

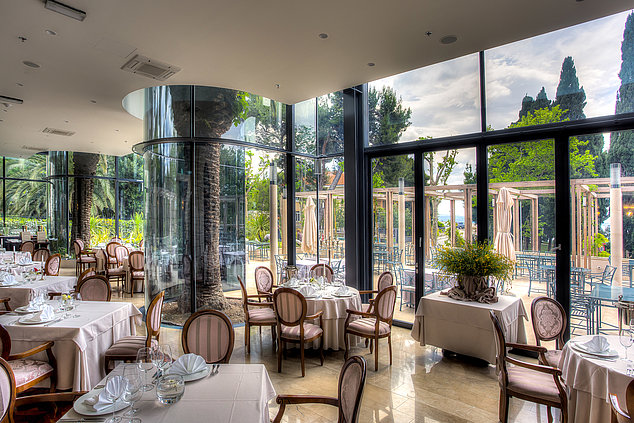

Hotel Park

HR-Split

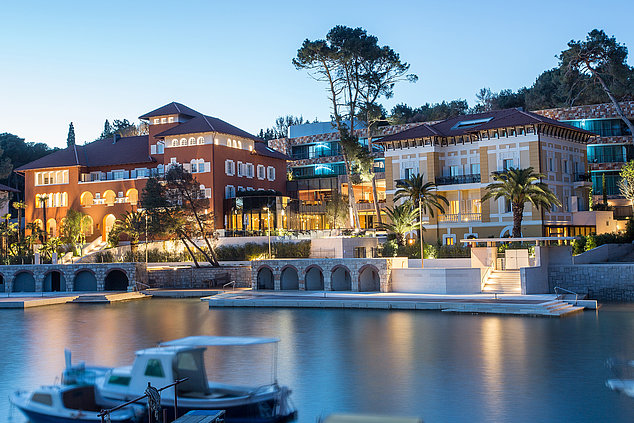

Hotel Alhambra Croatia Jansen AG

Hotel Alhambra

HR-Mali Losinj
Steel Systems

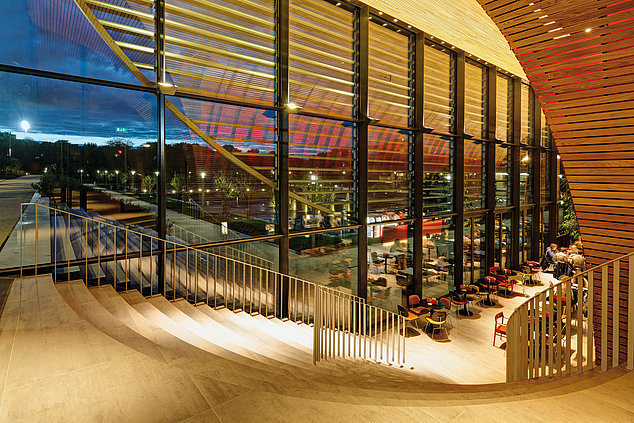

Erasmus Student Pavilion
