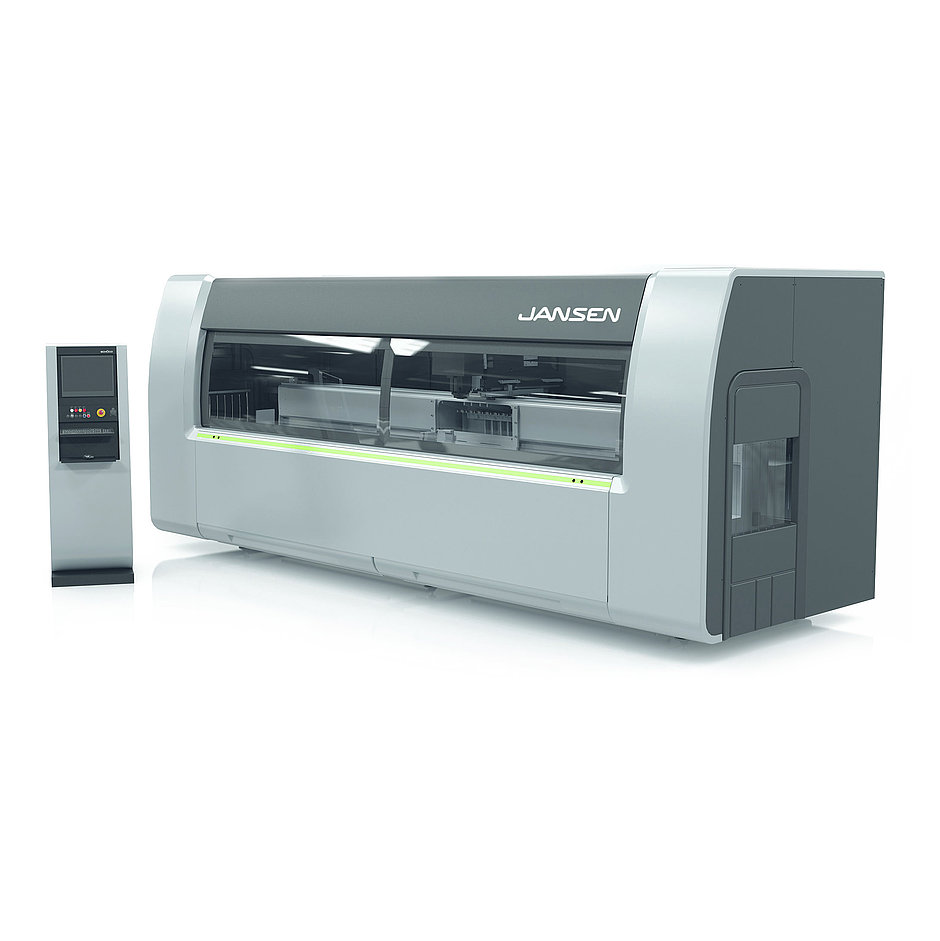

CNC-AF 310

The AF 310 is the result of combining maximum speed and flexibility. Machining lengths of 4 m and handling lengths in excess of this in two stages, it can be used to manufacture window, door and sliding elements thanks to 3-sided machining and pre-head processing.

  • Features and equipment
  • Technical data
  • Processing features
  • Video

  • 3-sided machining of aluminium and steel profiles
  • Machining of steel (S235 up to about 3 mm wall thickness)
  • 8.5 kW spindle / max. 24,000 rpm / compressed air cooled
  • Network card
  • Stiff machine bed for high loadings
  • The main axes slide on precision linear guideways
  • The profile is firmly held by 5 pneumatic clamps
  • Absolute axis displacement measurement system, therefore no need for a reference run
  • 2 folding fixed stops for accurately defining the zero point, which allows lengths of up to 8 m to be processed
  • Automatic tool changer with 10 places
  • The tool is cooled by a minimum pulse spray device
  • The axes are automatically lubricated by a centralised system
  • 5 individually operated and positionable clamps
  • Swarf drawers
  • Paint finish: RAL 9006 (white aluminium), RAL 7016 (anthracite grey)

Operation and control

  • Easy-to-use control panel with 19“ TFT colour display
  • SchüCam used for machine control
  • Windows® is the common operating system for SchüCam and JANIsoft
  • The machine is supplied with the software installed
  • Processes for the AF 310 can be generated directly in the design software
  • SchüCam can be used on an ordinary office PC
  • The SchüCam software is operated on the machine in the same way as on the office PC
  • SchüCam with visualisation of the profiles, tools and the processing to assist with monitoring on both an office PC and on the machine
  • Quick and easy transfer of machining data by USB or over the network
  • Simple, menu-based modification of machining macros without the need for NC programming knowledge
  • In-house programming without the need for NC / CNC knowledge
  • Remote maintenance software

Height 2325 mm
Depth 2100 mm
Width 5740 mm
Weight 3600 kg
Speed 24,000 rpm
Output 8.5 kW
Voltage 400 volt
Frequency 50 Hz
Current 20 A
Operating pressure 6-8 bar
Compressed air consumption 330 NL / cycle

Max. cross section (W x H) / length 300 x 190 / 4000 mm (for 130 mm tool length)
Max. cross section (W x H) / length; with pivoted A-axis 300 x 170 / 4000 mm (for 150 mm tool length)
Max. cross section (W x H) / lenght; with excess length and pivoted A-axis 300 x 150 (1301) / 8000 mm (for 150 mm tool length)
Max. profile weight 20 kg/clamp, max. total weight 100 kg
Max. profile weight; (at clamp positioning with profile) 12 kg/clamp, max. total weight 60 kg
Movement: profile bar / tool Tool
Max. number of profiles per machine 2
Number of fixed profile stops 2
Changing the clamps in 2 operations automatic
Steel profile processing up to a wall thickness of 3 mm possible

1 = with existing tool bridge control

CNC-AF 310
