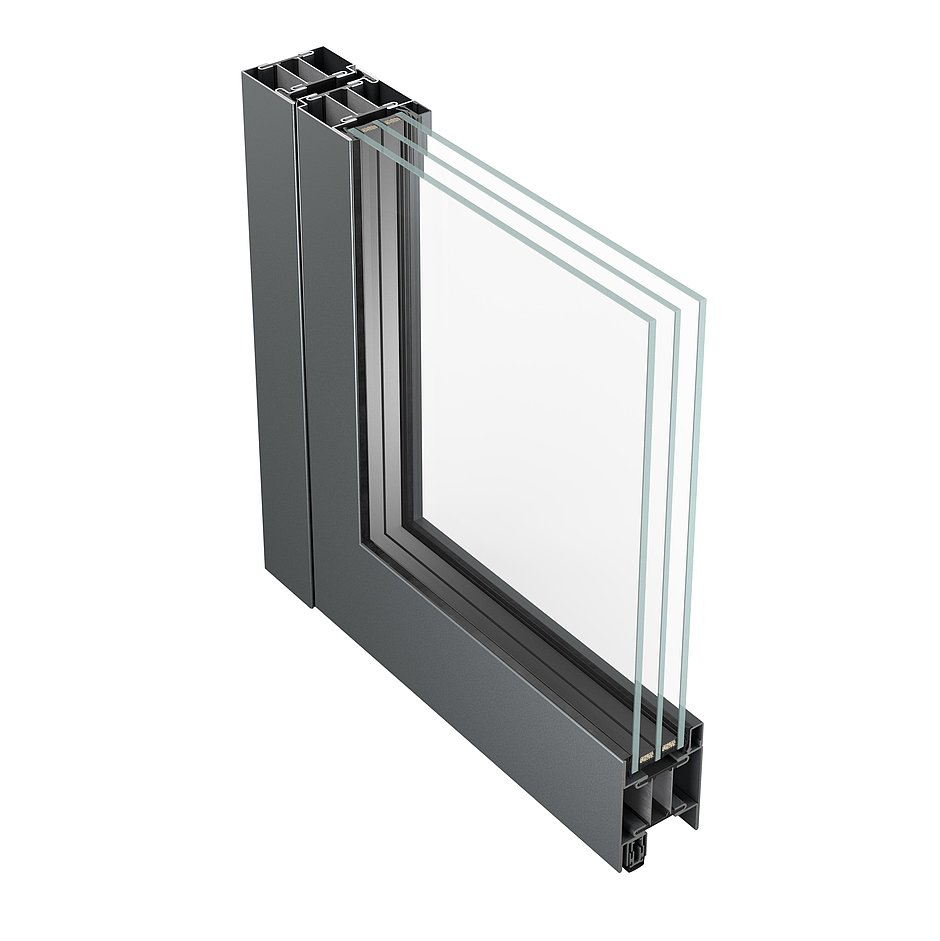

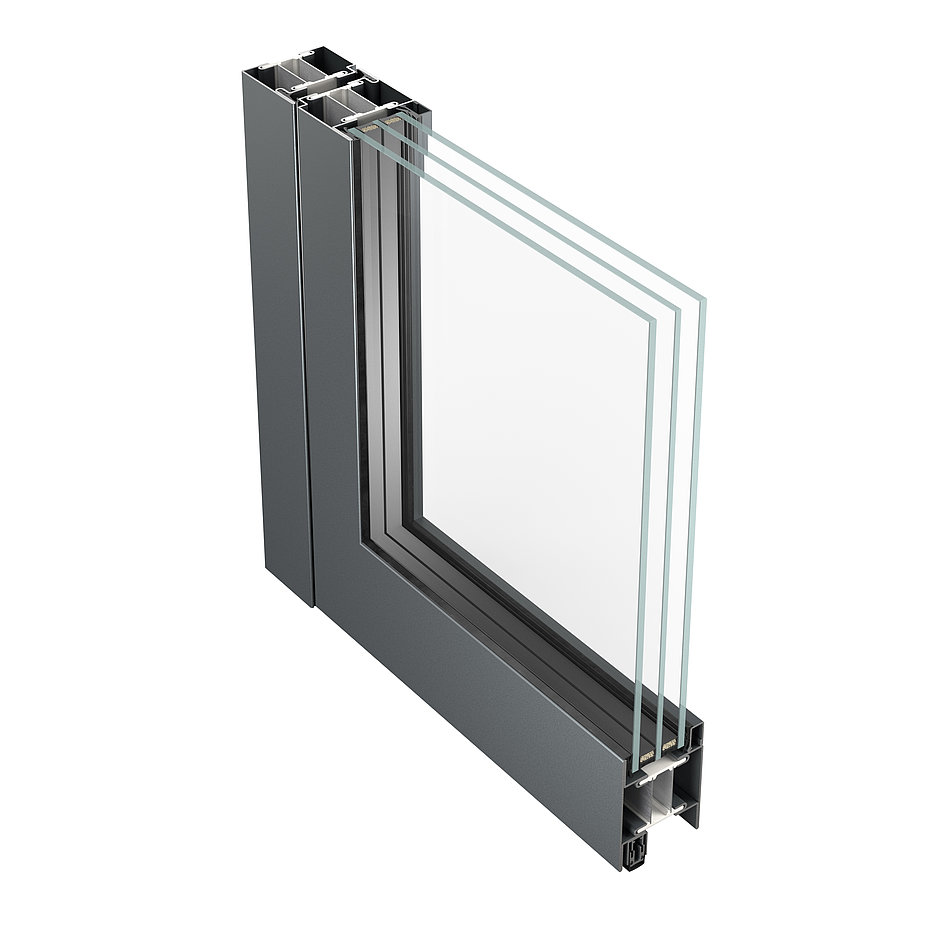

Jansen Janisol 70 door
With profiles from the Janisol door system (60) and insulators from the Janisol Primo system, the new Jansen Janisol 70 system combines proven quality and the ability to use triple insulated glass.
Jansen Janisol 70 can be used in heavily frequented buildings such as offices, schools, railway stations or community medical practices, thus utilising the advantage of the high resistance of steel. With steel, maintenance is kept to a minimum; and the material is synonymous with durability.
Materials / surface finish
- Uncoated steel or strip galvanised steel, suitable for powder coating or stove-enamelling
Element types
- Single- and double-leaf doors, with and without fixed side lights or top light, opening inwards and outwards
- Sheet metal clad doors with or without cut-outs for glazing
Equipment
- Weld-on or screw-on hinges made of steel and stainless steel
- Integrated door closers
- Deadbolt locks, multi-point locks (including motorised models)
- Designer glazing beads
- Panic locks and panic push-bars
- Designer handles
- 85 mm leaf and frame profiles
Special technical features
- 70 mm installation depth
- Filling elements up to 46 mm (triple-glazed insulation glass)
- Leaf sizes up to 3000 mm
- Easy-access threshold designs
- Special geometries (circular and segmental arches)
Test certificates
- CE marking according to the EN 14351-1 product standard
- Water tightness up to class E750 (750 Pa)
- Air permeability up to class 4 (600 Pa)
- Resistance to wind load up to class C4/B4 (1600 Pa)
- Airborne sound insulation up to Rw 46 dB
- Heat transfer coefficient Uf> 1.0 W/m2K
- Class 2 operators
- Shear bond according to EN 14024
- Continuous function test class 8 (1,000,000 cycles)
- Mechanical strength in accordance with EN 1192, Class 4
- Prefabricated fall-protection glazing compliant with DIN 18008-4
- Escape door compliant with EN 1125 / EN 179
- Impact resistance compliant with EN 13049, up to Class 4
- Roll-over resistance of thresholds compliant with the ift guideline up to Class 4
- EPD available
