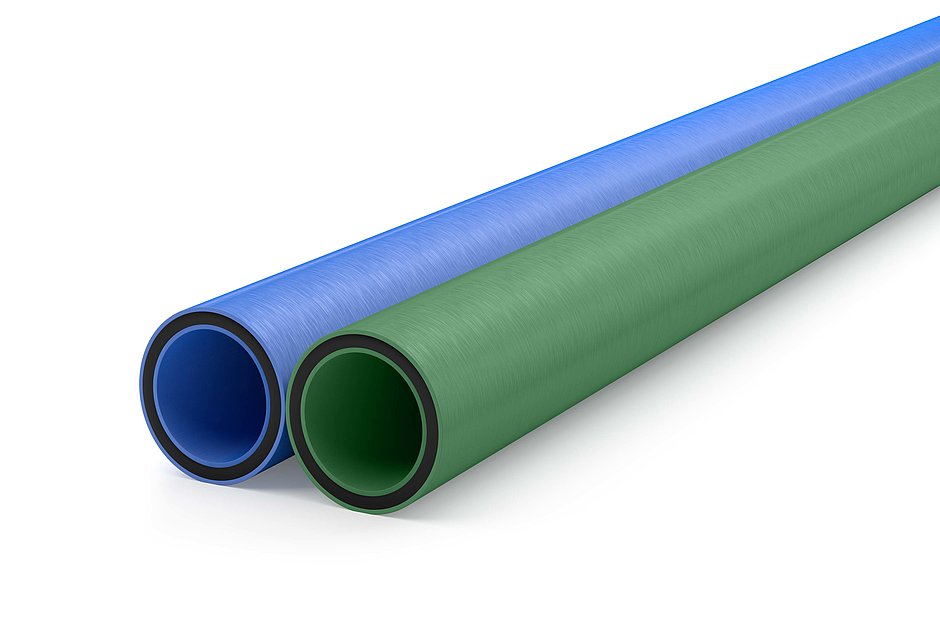

Jansen Wavin TS DOQ®

The three-layer pressure pipe with strong resistance

The co-extruded three-layer pipe provides the best possible resistance to scoring and point loads.

Jansen Wavin TS DOQ ® consists of heavy-duty, crack-resistant Finathen N 8000, a material of the PE 100 RC group. This means that the three-layer pipe is leading in the European market: not only in terms of resistance to scoring and point loads, but also regarding the documented quality assurance of the entire manufacturing process. This includes the test certificates in accordance with EN 10204-3.1.

  • Productdetails
  • Available in
  • Dimensions

Materials
polyethylene PE 100 RC

Construction
3-layer

Colour
Blue

Applications

  • Drinking water supply
  • Gas supply
  • Trenchless installation methods
  • Stricter safety requirements to resist heavy point loads
  • Wastewater pressure lines

Installation methods

  • Trenchless installation via relining
  • Hydraulic drilling
  • Ploughing and milling procedures

External diameter
dn 32 to 315 mm

Length

  • In lengths of 12 m /li>
  • Special lengths

Available options

  • Smooth end
  • With Push-Fast spigot and socket connector with longitudinal force transfer (not for gas)

Nominal pressure

  • PN 10, S 8 / SDR 17
  • PN 16, S 5 / SDR 11
  • On request PN 25, S 3,2 / SDR 7,4
  • On request PN 40, S 2 / SDR 5

Connection techniques

  • Butt weld (heating element butt welding)
  • Electrofusion coupler
  • With Push-Fast spigot and socket connector with longitudinal force transfer (not for gas) )

Approvals
SVGW approval 0204 -K 256

  • From dn 90 mm co-extruded three-layer pipes: middle layer PE 100 RC, inner and outer layer N 8000
  • Up to dn 75 mm solid wall pipes in N 8000
  • Water pressure pipes with royal blue
  • inner and outer layer up to 16 bar
  • Gas pressure pipes with yellow inner and outer layer up to 5 bar
  • Wastewater pressure pipes with green inner and outer layer up to 16 bar

Jansen Wavin TS DOQ®
in straight lengths of 12 m, smooth ended

Nominal pressure Series / SDR Dimensions dn
PN 16 S5 / SDR 11 32 to 400 mm



Jansen Wavin TS DOQ®
in coils of 100 m, smooth ended

Nominal pressure Series / SDR Dimensions dn
PN 16 S5 / SDR 11 32 to 90 mm


Other dimensions on request

Jansen Wavin TS DOQ®

Contact partner Service pipes

Do you have any questions or suggestions? Our customer service advisers are always available to assist you.

  • In house sales
    +41 71 763 93 30
  • Worldwide sales network

Services

With JANSEN Services we offer our customers help in the planning, design and execution of delivery systems

Services

References

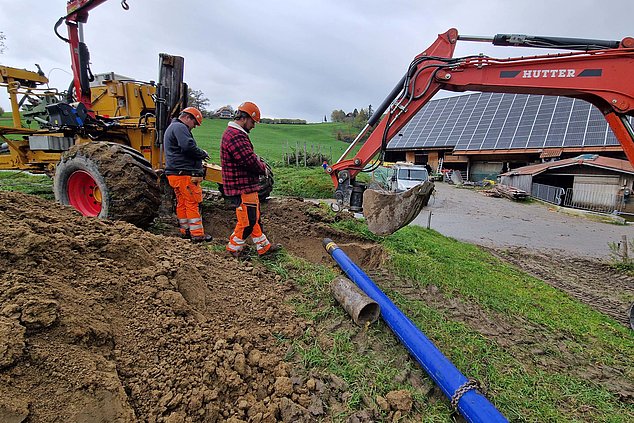

Renovation TWL Obermettlen-Burlinge - Jansen AG

Renovation TWL Obermettlen-Burlinge

CH-Ueberstorf
Plastic Solutions

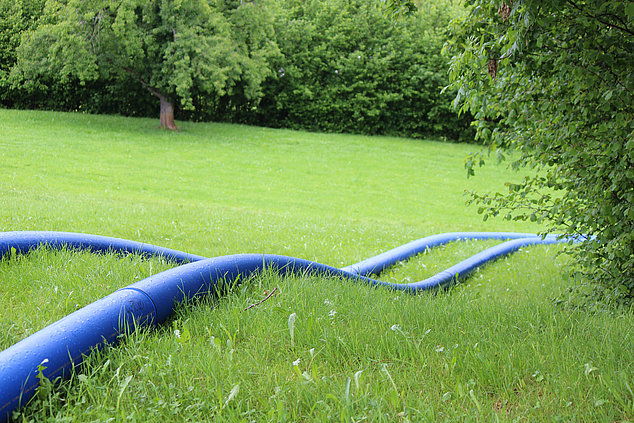

Forest „Wildbergwald“ in Oberuzwil
