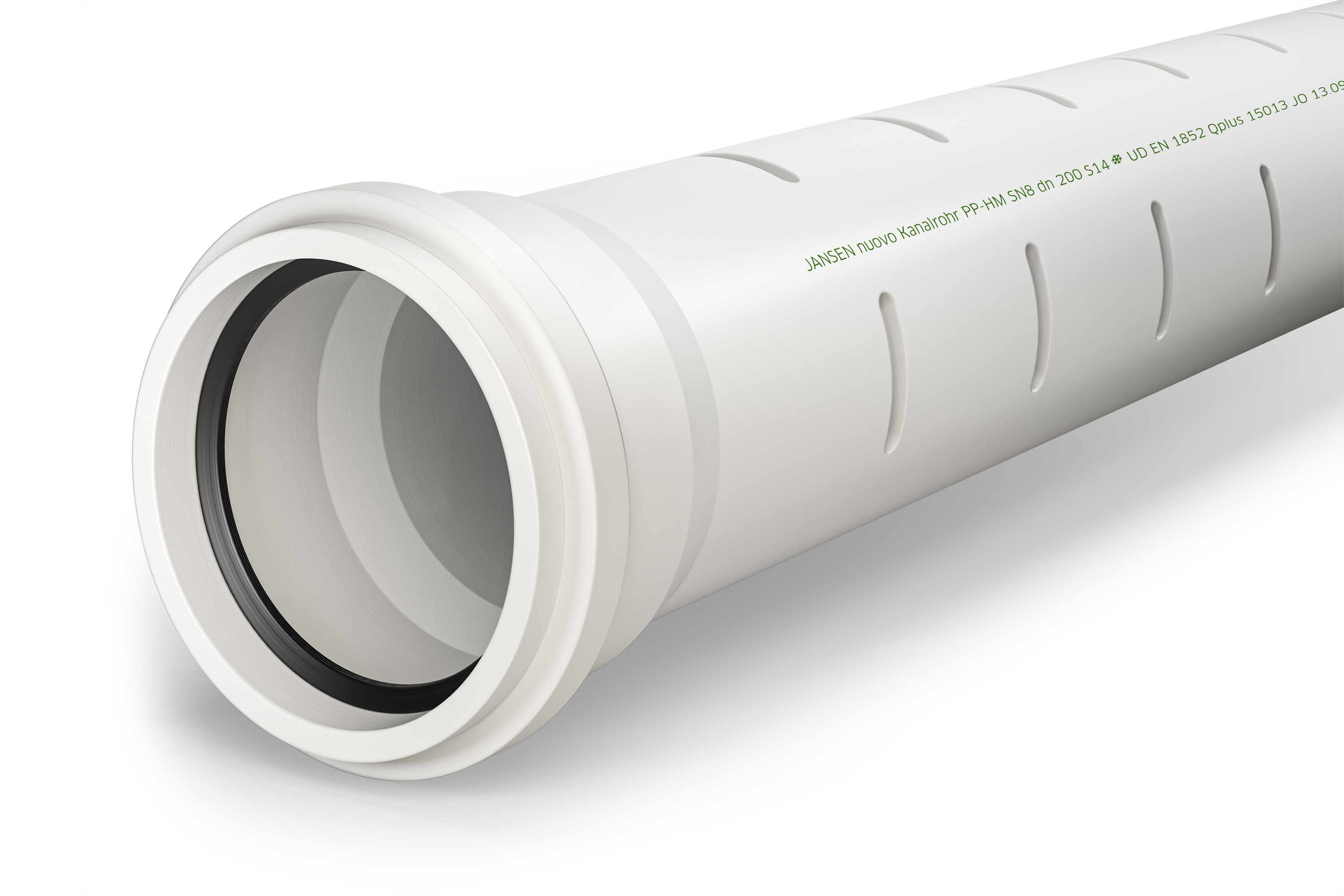

JANSEN nuovo sewer and perforated pipe

The economical sewer pipe system

This system achieves annular rigidity of SN 8 kN/m² due to the use of highly modular polypropylene PP-HM.

It is reliable, adaptable, strong and very economical.

Advantages

  • Integrally formed push-fit connector
  • Adaptable
  • Quick to install
  • Cost-effective
  • Cold impact resistant
  • Product details
  • Technical data
  • Dimensions

Materials
Polypropylene PP-HM

Construction
Solid wall

Colour
White

Applications

  • Drainage for building developments
  • Sewers
  • Seepage pipes

External diameter
dn 110 to 400 mm

Length

  • Manufactured length 6 m
  • Non-standard lengths on request

Available with
integrally formed push-fit connector

Annular rigidity
SN 8

Connection devices

  • With integrally formed push-fit connector
  • Complete range of fittings

Approvals
Q-Plus certificate No. 15013

Elastic modules

Short-term loading (1 hour) ER,kurz min. 1800 N/mm2

Long-term loading (50 years) ER,lang min. 750 N/mm2

Poisson's ratio 0,40 [-]

Length variation 0,14 mm/mK



Dimension dn Wall thickness en Internal diameter di Manufactured length
110 mm 3.8 mm 102.4 mm 6 m

125 mm

4.3 mm 116.4 mm

6 m

160 mm

5.5 mm 149.0 mm

6 m

200 mm

6.9 mm 186.2 mm

6 m

250 mm

8.6 mm 232.8 mm

6 m

315 mm

10.8 mm 293.4 mm

6 m

400 mm

13.7 mm 372.6 mm

6 m

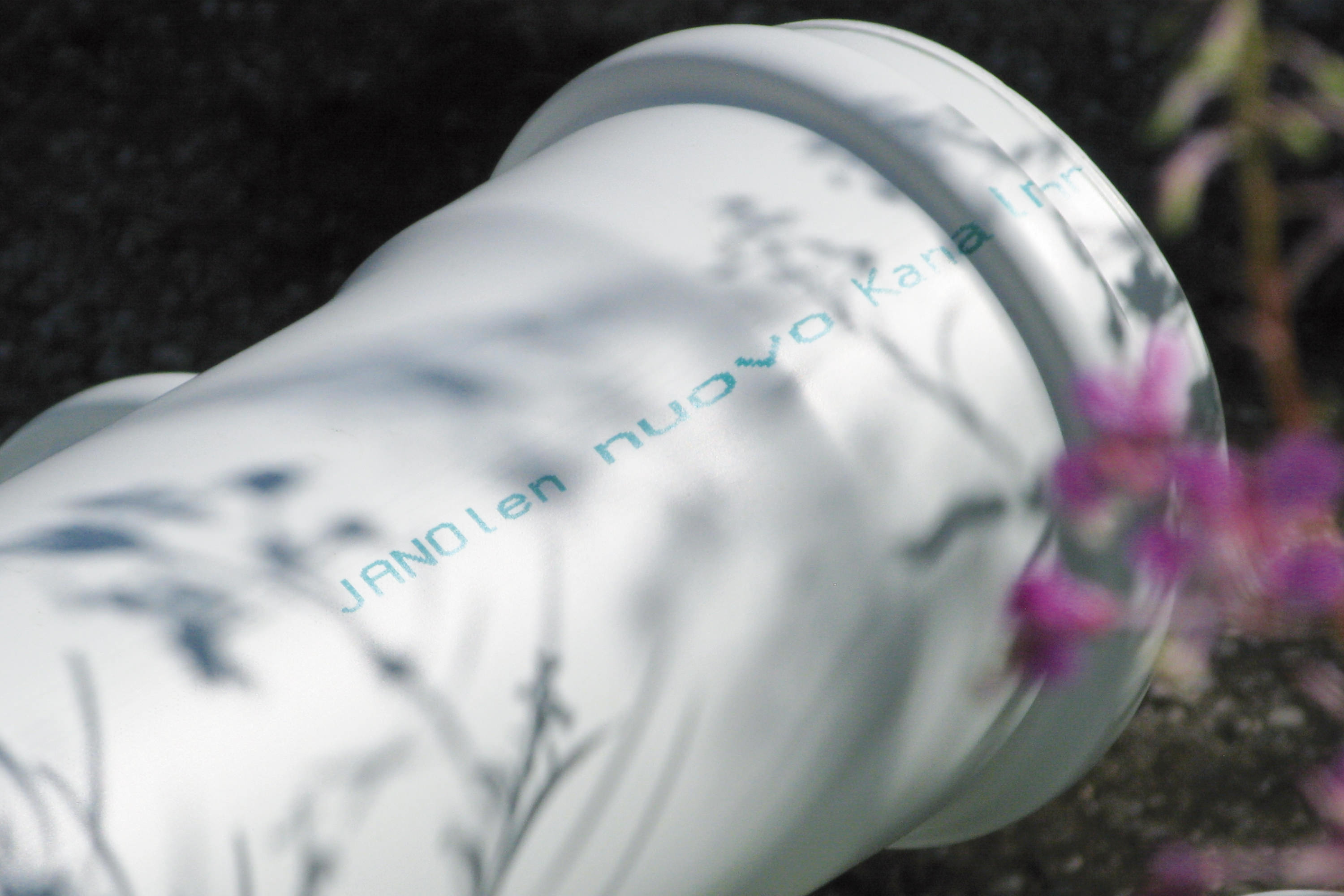

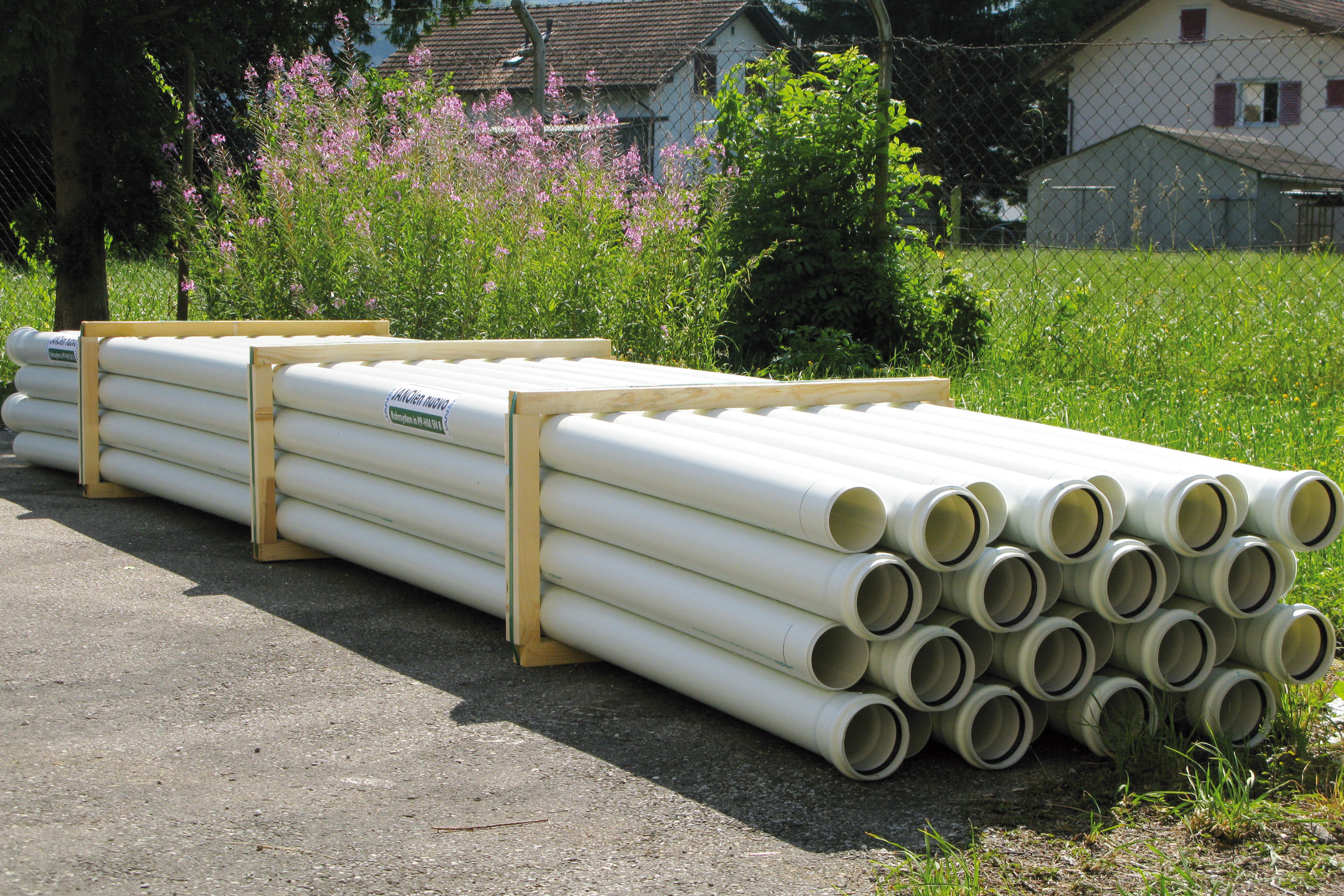

JANSEN nuovo sewer and perforated pipe
JANSEN nuovo sewer and perforated pipe
JANSEN nuovo sewer and perforated pipe
JANSEN nuovo sewer and perforated pipe

Contact partner Drainage

Do you have any questions or suggestions? Our customer service advisers are always available to assist you.

  • In house sales
    +41 71 763 93 30
  • Worldwide sales network

Services

With JANSEN Services we offer our customers help in the planning, design and execution of drainage systems

Services

References

Plastic Solutions

Rehabilitation of the A1 motorway

CH-St. Margrethen
Plastic Solutions

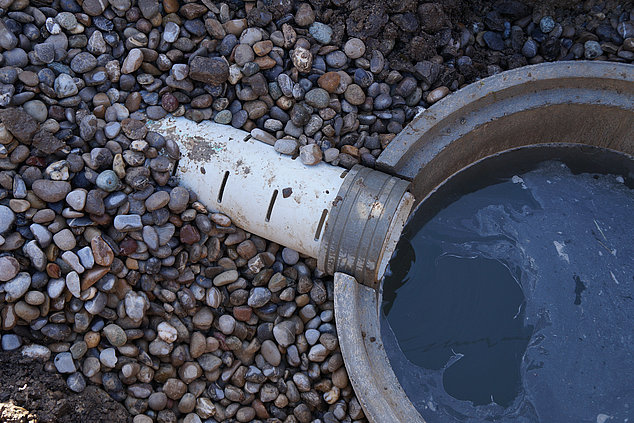

Renewal railway line

Sulgen
Plastic Solutions

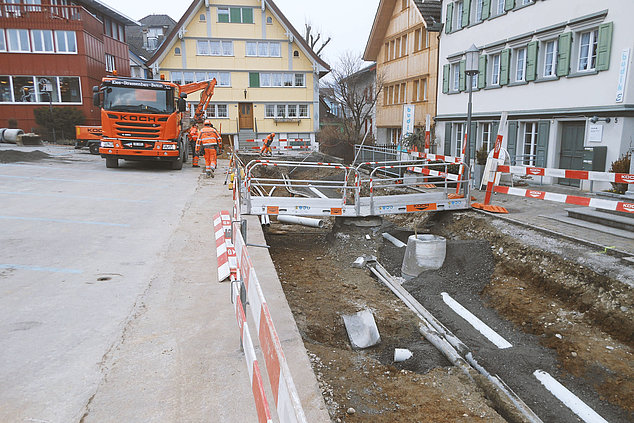

Landsgemeindeplatz
