Jansen https://www.jansen.com/en/index.html
Back

JANSEN ecoline

the economic solution for normal installation conditions

  • Product details
  • Advantages
  • Additional products
  • Accessories

Materials

  • PE, PVC (ball valves)
  • Stainless steel (butterfly valves/panels)
  • Brass (fittings and transitions)

Dimensions

Heat pump connection

63, 90, 110 mm

Bone circuit connection

50 m


Continuous service temperature
-20° C … +40°C (DIN 8074)

Hydrostatic load class
p0

Load capacity of lid
A15 (1.5 t)

Production according to
SIA 384/6, ÖWAV Regelblatt 207, VDI 4640, etc.
DVS 2212-1, REACH





Plastic Solutions

Robust und functional
Made of up to 12mm thick PE plates; reinforced connecting pipes, triple welded with the chamber wall; UV- and corrosionresistant plastic cover, load rating class A15 (1500 kg); ecoline 940 + 1500: telescopic cover

Shut-off valves
All outlets have removable shutoff devices with large hydraulic passage. The main lines can also be shut off, depending on the type of chamber by means of ball valves or butterfly valves. The lines to the brine circuits are equipped as standard with Inline Setters (with a 20 -70 l/min display).

The circular lines

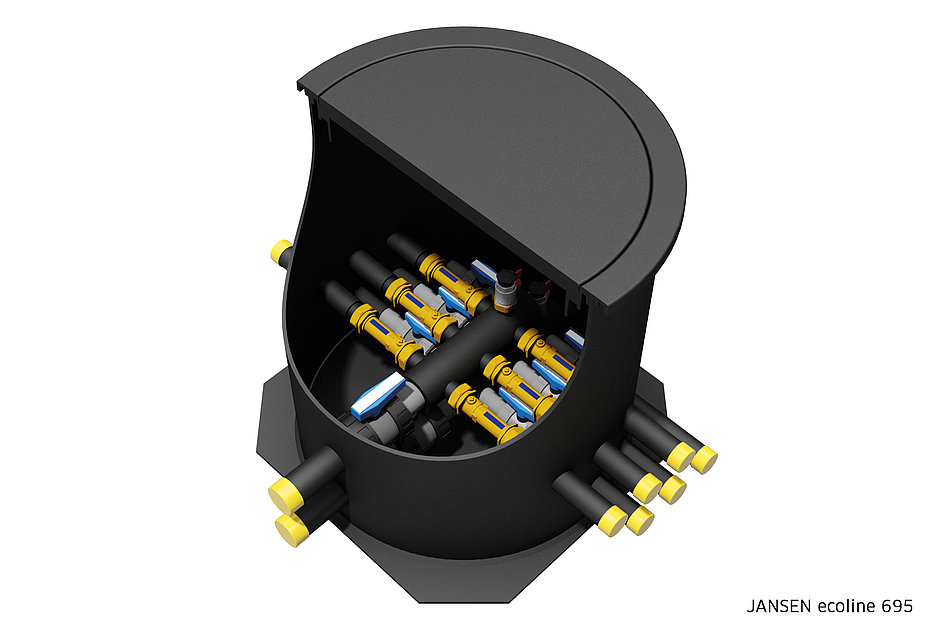

are fitted with inline setters as standard (display 20-70 l/min). All components accessible In the JANSEN ecoline 695 all service components as well as all shut-off fittings of the main lines can be operated from outside. In the JANSEN ecoline 940 the collector manifold can be entered. The JANSEN ecoline 1500 is designed in such a way that the centre has sufficient room for entry and operation.



  • Fittings and electrically welded sleeves
  • Stop valves for the utility room
  • Pressure and temperature displays
  • Manual ventilator
  • Wall collar and press ring
  • BEGU lid and load absorption plates
  • Antifreeze concentrate (in drum or IBC)

BEGU lids, including load absorption plates, permit convenient installation underneath car parks and similar surfaces without complex load absorption measures on site.

This accessory as well as additional fittings and dome structures can also be found in our price list.



JANSEN ecoline
JANSEN ecoline
JANSEN ecoline

Downloads

  • Price list
    Manifold chambers (6 MB)

Contact partner Geothermal

Do you have any questions or suggestions? Our customer service advisers are always available to assist you.

  • In house sales
    +41 71 763 99 10
  • Worldwide sales network

Services

With JANSEN Services we offer our customers help in the planning, design and execution of geothermal plants
