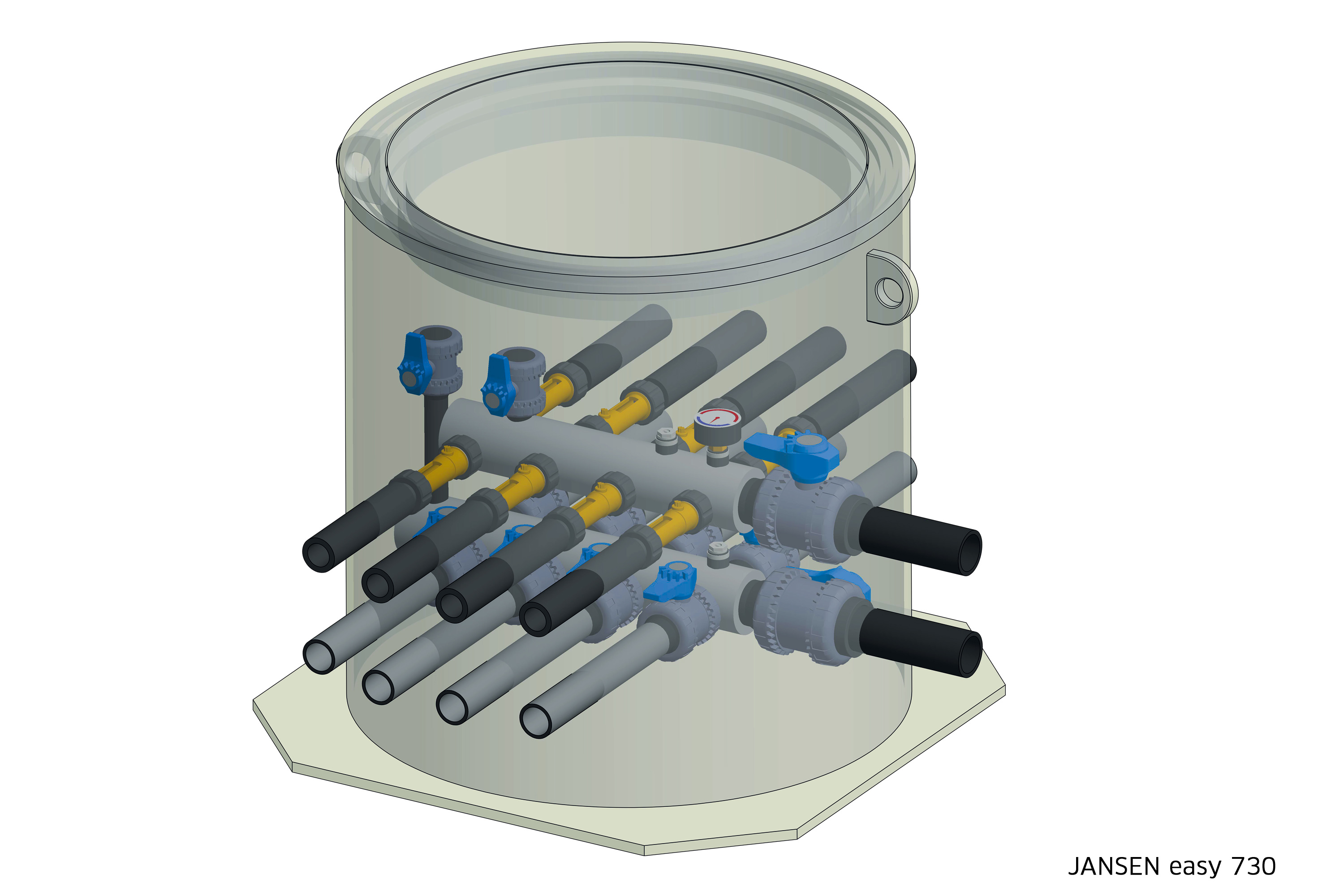

JANSEN easy manifold chambers
JANSEN easy manifold chambers offer the optimal solution in every situation.
They impress with low weight and straightforward installation. All connection lines are leak-proof welded to the chamber wall, as per DVS 2207/1, and provide a manifold system ready to connect. High-quality materials in conjunction with first-class workmanship ensure a long service life and trouble-free operation. The manifold system is pressure tested in the factory. You will find further technical details in the JANSEN easy product information. Special versions are available on request.
Materials
PE, stainless steel (butterfly valves), brass (fittings and transition pieces)
Dimensions
- Brine circuit connection: 32, 40, 50 mm
- Heat pump connection: 63, 75, 90, 110, 125, 140, 160, 180 mm
Versions
A very wide range of versions and non-standard products is available
Approvals / certifications
- DVS-compliant welds
- SIA 384/6, ÖWAV 207, VDI 4640
Associated products
- Fittings and electrically welded sleeves
- Flow display and stop valves
- Pressure and temperature displays
- Bleed valves and air traps
- Pipe openings
- Antifreeze concentrate (in drum or IBC)
1st cover class A35 (3,500 kg)
New: High-quality, UV-resistant, watertight plastic manhole cover, loadable up to 3,500 kg, for all manholes as standard! Covers for traffic areas in class B125 and dome extensions (telescopic domes) are optionally available.
2. for up to 10 mWs
Heavy-duty construction for installation in groundwater (pressure class p1.5). Optionally also for increased to extreme requirements below building floor slabs (p5 / p10).
3. reinforced pipes
Greater wall thickness on beams and nozzles for increased load-bearing capacity
and durability.
4. premium equipment
As standard:
- Bullet indicators and ball valves in the circuit connections
- Shut-off devices in the main lines
- 1” flushing connections
- Additional air vent valves
- Thermo-pressure gauge
The distributor chambers can be equipped with optional accessories
BEGU covers including load absorption plates permit convenient installation underneath car parks and similar surfaces without complex load absorption measures on site.
You will also find these accessories as well as additional fittings and dome structures in our price list.
