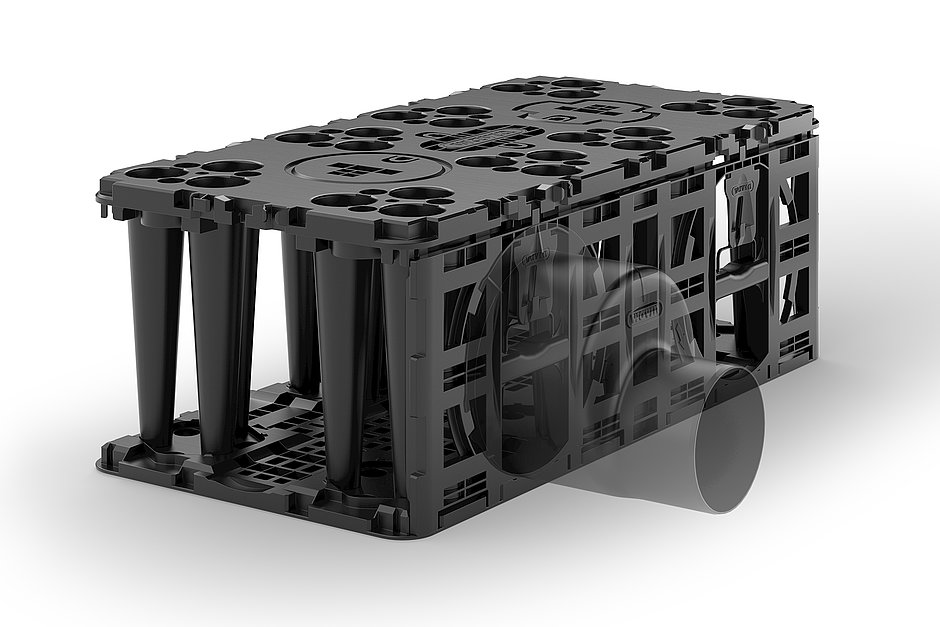

AquaCell NG

Innovative, environmentally-friendly rainwater management

The flexible infiltration system for the implementation of retention and infiltration systems.

Rainwater management includes the collection, transport, pretreatment, restriction and infiltration or retention of rainwater. The areas of application for rainwater management systems are diverse and are used in private, municipal and industrial drainage systems. From traffic area drainage systems through drainage and pre-treatment systems to retention and infiltration systems, Jansen offers intelligent complete solutions.

AquaCell NG, the New Generation, is the innovative and environmentally friendly solution for efficient, decentralised rainwater management and will replace the QBic Plus system in 2023. Using a completely new design, engineers have developed a modular infiltration and retention system that simplifies work for contractors, engineers and installers alike. Made from 100% recycled and recyclable polypropylene (PP), the system offers excellent and consistent material properties, allowing a long service life to be achieved.

In addition to the features that are a matter of course for a storage element, AquaCell NG sets completely new standards in the areas of design freedom, installation speed and accessibility – let us convince you!

Advantages

  • Design freedom – modular construction for perfect adaptation to requirements
  • Quick installation – plug-in connections and integrated handles to reduce construction time
  • Accessibility – continuous inspection and cleaning channels to ensure long-term use
  • Low weight – only 11.4 kg/unit
  • Low volume – little transport and space required on the construction site
  • High load-bearing capacity – simply plugged into one another, the modules can withstand loads in accordance with SLW 30 and 60 requirements
  • Environmentally friendly and sustainable – 100% recycled and recyclable material, QPlus certified, EPD (Environmental Product Declaration)
  • Product details
  • Delivery programme
  • Videos
  • Online calculation

Materials
100% recycled and recyclable polypropylene (PP)

Structure
Modular design, depending on installation height

Colour
black

Application

  • private drainage
  • industrial drainage
  • municipal buildings
  • property drainage
  • industrial buildings

Dimensions (WxDxH)
1,200 mm x 600 mm x 425 mm (incl. base plate)

Gross volume
max. 306 litres

Net volume
max. 293 litres

Storage coefficient
max. 96%

Dimensions (WxDxH) in double compound
1,200 mm x 600 mm x 460 mm (incl. base plate)

Gross volume in combination with 2nd storage element
max. 331 litres

Net volume
max. 306 litres

Storage coefficient
max. 92.4 %

Connections
DN/OD 160, 200, 315; from DN/OD 400 divide pipe into several connections

Max. load capacity
SLW 60

Approvals/Certificates

  • Swiss Quality: QPlus approval
  • EPD

The components, consisting of a base plate, storage element, side plate, shaft and pipe adapter are assembled by Jansen on a project-specific basis. In addition to the plastic elements, Jansen also supplies the required nonwovens and films, so that the complete system arrives at the construction site ready for installation.

AquaCell NG

Downloads

  • Certificate
    Aquacell certificate 60002 (229 KB)
  • Information Produit
    Information Produit AquaCell NG (3 MB)
  • Informatzioni sul Prodotto
    Informatzioni sul Prodotto AquaCell NG (3 MB)
  • Vue d’ensemble
    Vue d’ensemble Évacuation des eaux usées (8 MB)
  • Panoramica del sistema
    Panoramica del sistema Drenaggio urbano (8 MB)
  • Description du système
    Description du système AquaCell NG (8 MB)
  • Descrizione del sistema
    Descrizione del sistema AquaCell NG (8 MB)
  • Fiche technique
    Fiche technique AquaCell NG (431 KB)
  • Informazioni sul prodotto
    Informazioni sul prodotto AquaCell NG (430 KB)
