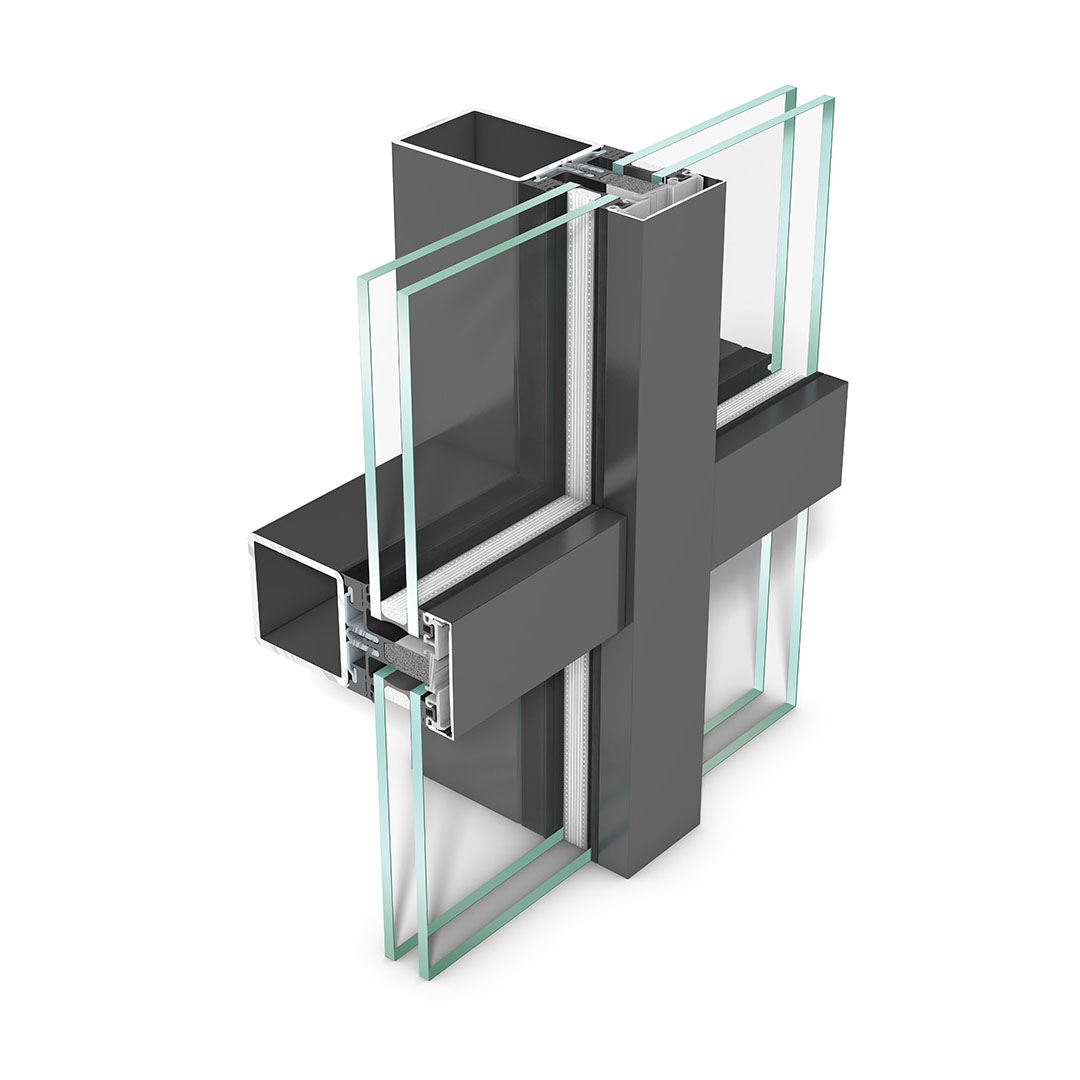

Jansen Tec 60 Facade

Mullion-transom curtain wall with a face width of 60 mm and wide-ranging advantages. Steel provides high structural strength combined with maximum transparency. This paves the way for large spans, slim geometries, and high glass weights.

  • Product details
  • Detailed section

  • Mullion-transom curtain wall system with a face width of 60 mm
  • Vertical and polygonal configurations are possible
  • Also suited for 3° roof glazing
  • Suitable for large spans because steel offers 3 times the load carrying capacity of aluminium.
  • Compatible with Jansen Tec add-on curtain walls and with Jansen Fineline and Jansen Hermetic window profiles

Technical Details

  • Resistance under wind load : ±1375 Pa / Security ±2062 Pa (facade) ±2000 Pa / Security ±3000 Pa (for 3° glass roof)
  • Air permeability : AE
  • Watertightness : RE 1200
  • Impact strength : E5-I5
  • Thermal transmittance : Ucw ≥ 1,7 W/m²K
  • Sound insulation : ≤ 45 dB (vertical glazing)
  • Fire protection EI (partition walls) : up to EI-120
Jansen Tec 60 Facade

Jansen Docu Center

  • Sales range & processing and assembly
    Jansen Tec 60 facade
