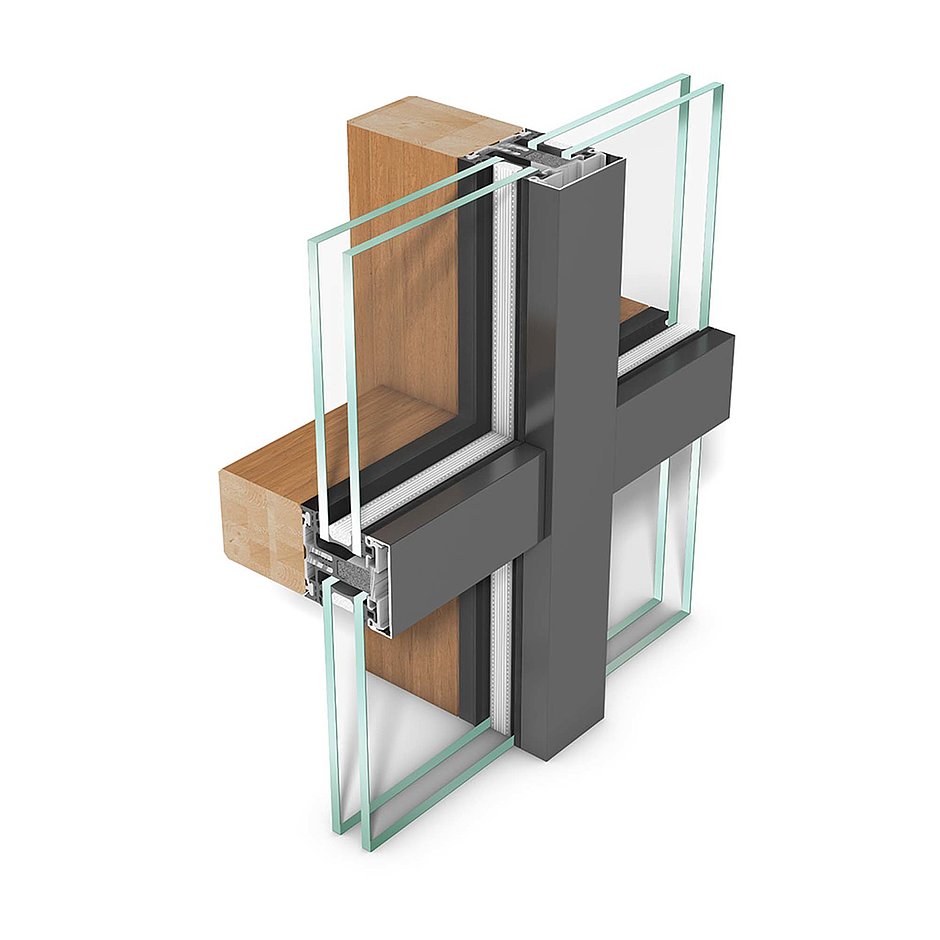

Jansen tec 55-1

Add-on curtain wall of mullion-transom design for steel and wooden substructures. Its design advantages include its suitability for 0° roof glazing.  A compelling functional advantage is that Jansen tec 55-1 meets passive building requirements.

  • Add-on curtain wall of mullion-transom design for steel and wooden substructures
  • Face width of 55 mm
  • Suited for glass roofs with 0o pitch
  • Vertical and polygonal curtain walls up to 30°
  • Meets passive building requirements
  • Can also be configured as heated curtain walls


  • Resistance under wind load : +2000/-3200 Pa; Security +3000/-4800 Pa
  • Air permeability : AE
  • Watertightness : RE 1500
  • Impact strength : E5-I5
  • Burglar resistance : RC 3
  • Thermal transmittance : Ucw ≥ 0.55 W/m²K (Plus version)
  • Sound insulation : ≤ 47 dB

Jansen tec 55-1
