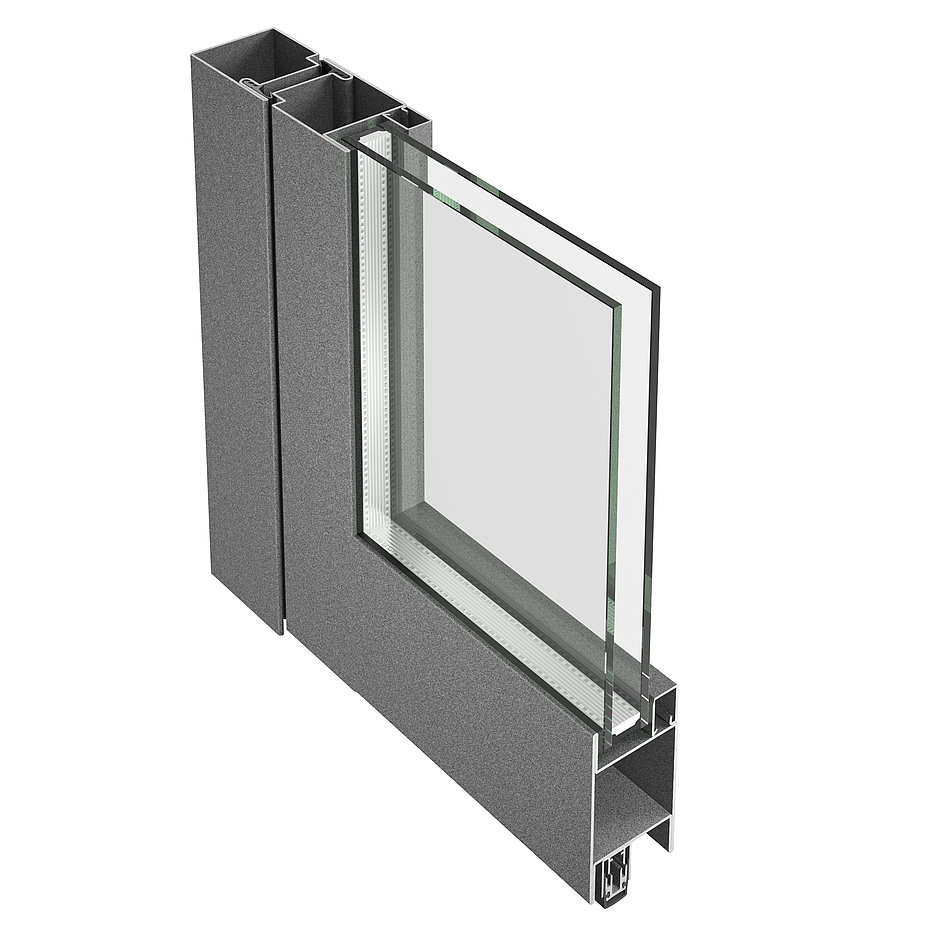

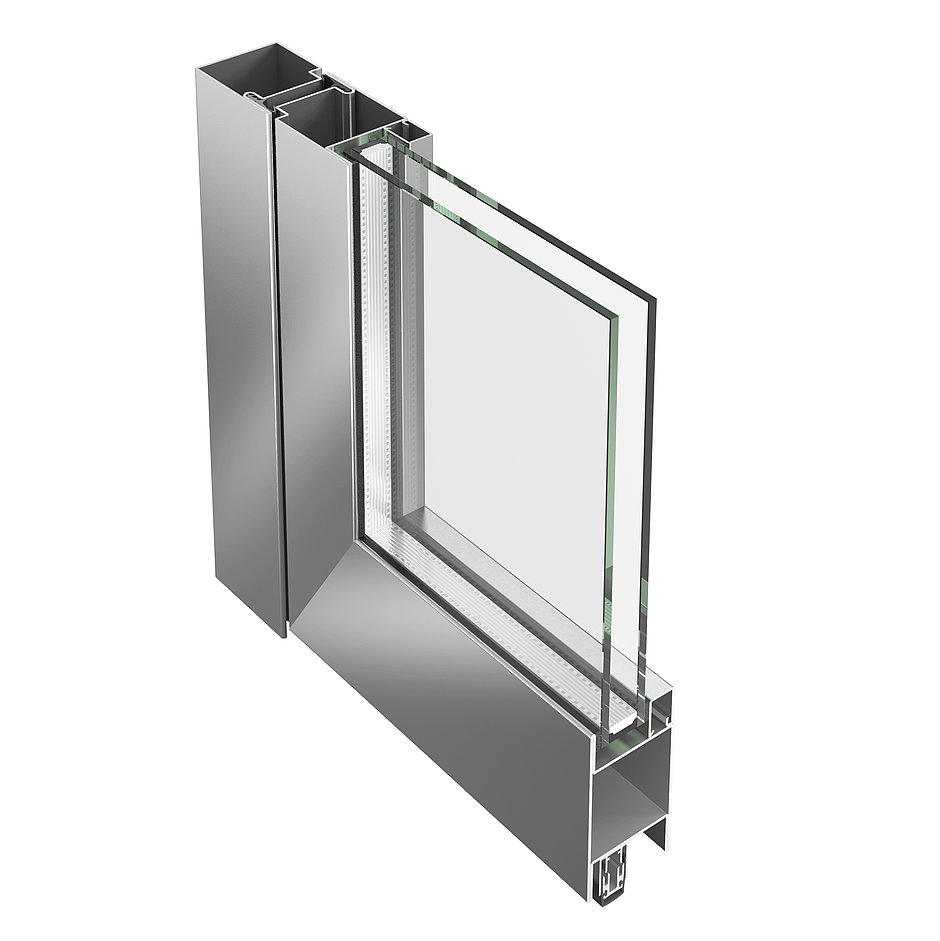

Jansen-Economy 50 Door

Jansen-Economy 50 is the profile system for flush door constructions without thermal insulation. The simple profile shapes ease the task of assembly. The wide range offers room for creative and cost-effective solutions.

Aveco de Bondt und Jansen Rethink-Partnerschaft 2024.
EPD-Logo 2024: Nachhaltige Produktzertifizierung von Jansen.
  • Product details
  • Section detail
  • BIM models

Materials / surface finish

  • Uncoated steel or strip-galvanised steel, suitable for powder coating or stove-enamelling
  • Stainless steel 1.4404 uncoated or polished

Element types

  • Single and double doors, with or without side panels and transom windows
  • Sheet metal clad doors with or without cut-outs for glazing
  • Anti-finger-trap door

Equipment

  • Steel hinges are available for welding or screw fixing
  • Integrated door closers
  • Multipoint locks (motorised also available)
  • Designer glazing beads
  • Emergency locks and panic push-bars

Special technical features

  • Installation depth 50 mm
  • Special geometries (semi-circular tops)
  • Also available with fire protection (Fire protection doors Jansen Economy 50) or smoke protection (Smoke control doors Jansen Economy 50 RS).

Test certificates

  • CCE marking in accordance with product standard
    • Tightness against heavy rain up to class 5A
    • Air permeability up to class 4
    • Resistance to wind load up to class C5
    • Sound insulation up to Rw 45 dB
  • Emergency exit door in accordance with EN 1125 / EN 179
  • Bullet resistance up to FB6/NS
  • Mechanical strength class 4
  • Conditions for approval fulfilled
  • Conditions for supporting safety devices fulfilled
  • EPD available

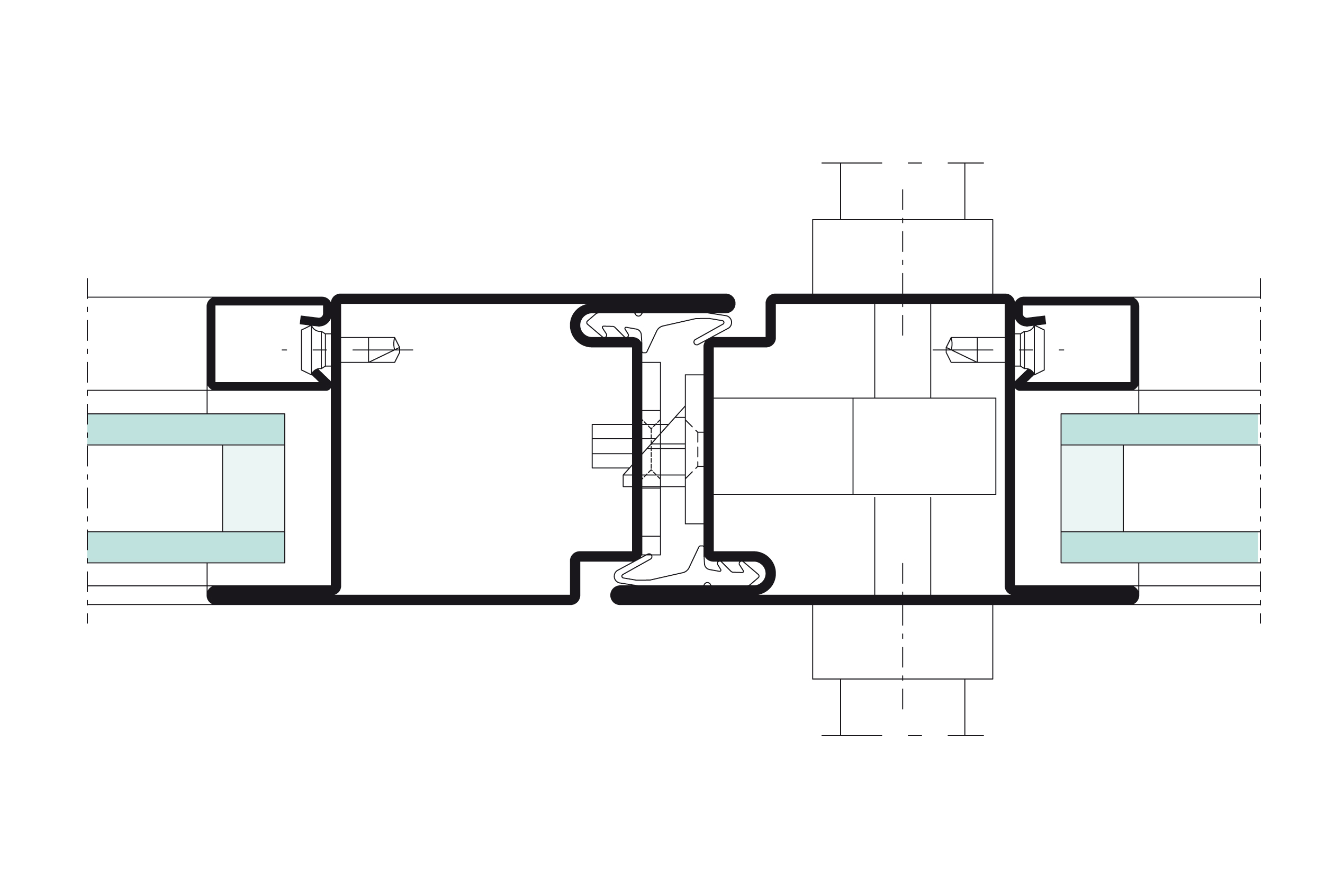

Jansen - Section detail Jansen Economy 50 door
Jansen-Economy 50 Door
Jansen-Economy 50 Door

Downloads

  • Brochures & information
    Uninsulated doors and windows (23 MB)

Jansen Docu Center

  • Sales range
    Jansen-Economy 50 doors
  • Installation of fittings and assembly
    Jansen-Economy 50 doors
  • Architecture catalogue
    Jansen Economy 50 steel and stainless door
  • Architecture catalogue
    Completed projects

References

Rami Rami Library - Jansen AG

Rami Library

TR-Istanbul
Norblin Factory - Jansen AG

Norblin Factory

PL-Warsaw

ETH BSS Research Building Schällemätteli

CH-Basel

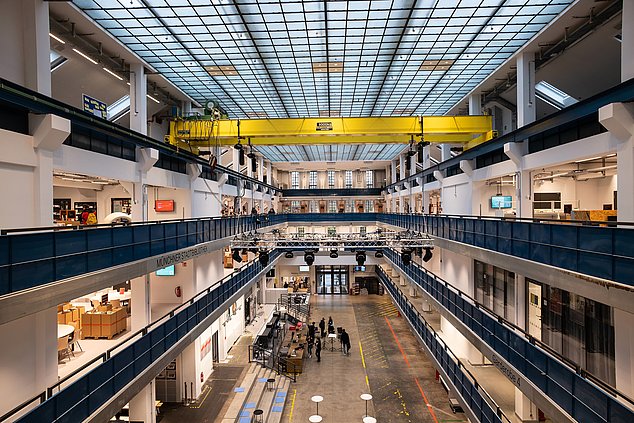

Trafohalle E Munich - Jansen AG

Trafohalle E

DE-Munich
Supercade Manitas - Jansen AG

Supercade Manitas

CO-Bogotá

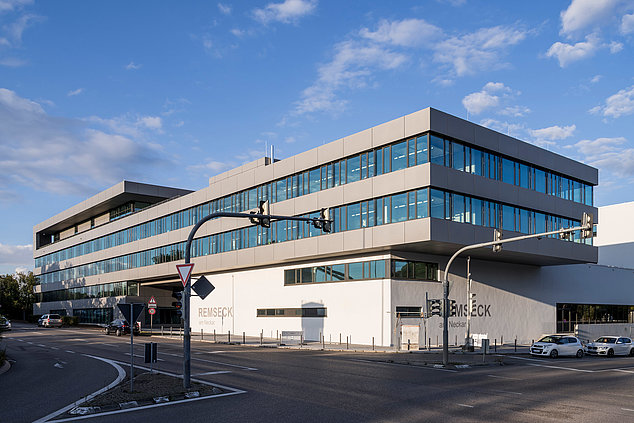

Remsecks New Centre - Jansen AG

Remsecks New Centre

DE-Remseck am Neckar

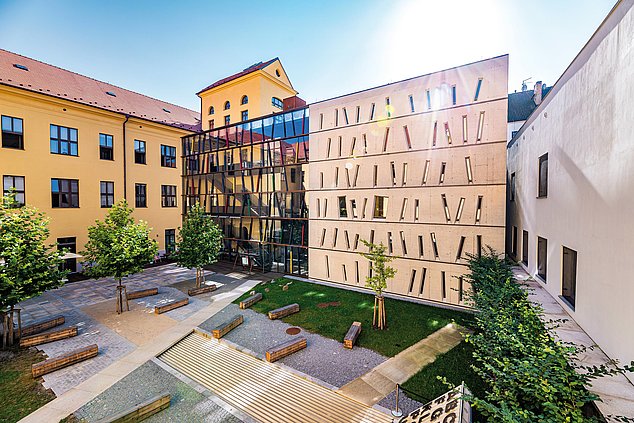

Library Písek - Jansen AG

Library Písek

CZ-Pisek
Yangzhou Garden Expo Park - Jansen AG

Yangzhou Garden Expo Park

CN-Yangzhou

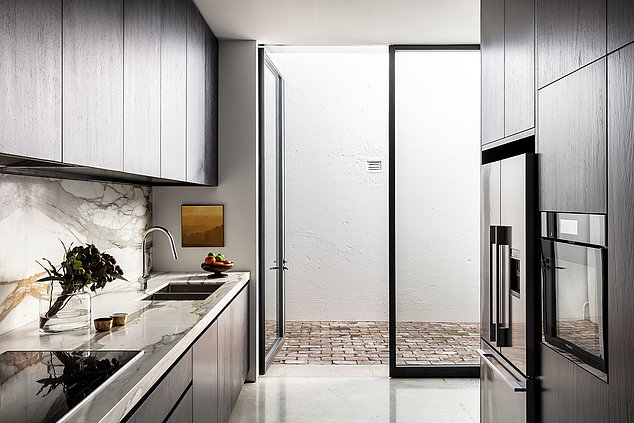

The Chimney House - Jansen AG

The Chimney House

AU-Sydney

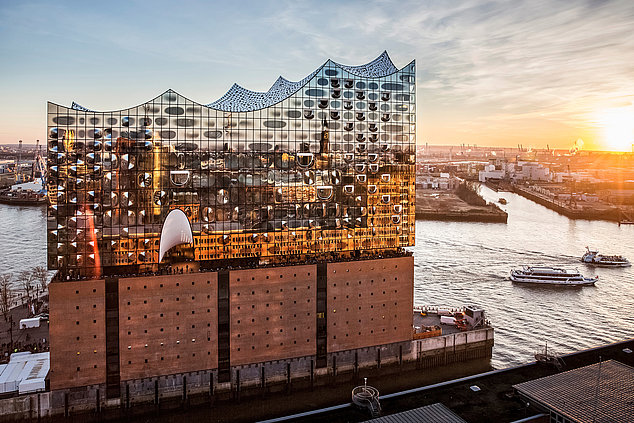

Elbphilharmonie - Jansen AG

Elbphilharmonie

DE-Hamburg

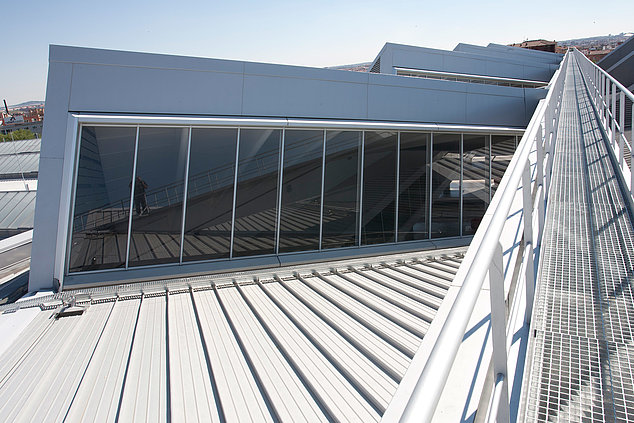

Atocha - Jansen AG

Atocha

ES-Madrid
Steel Systems

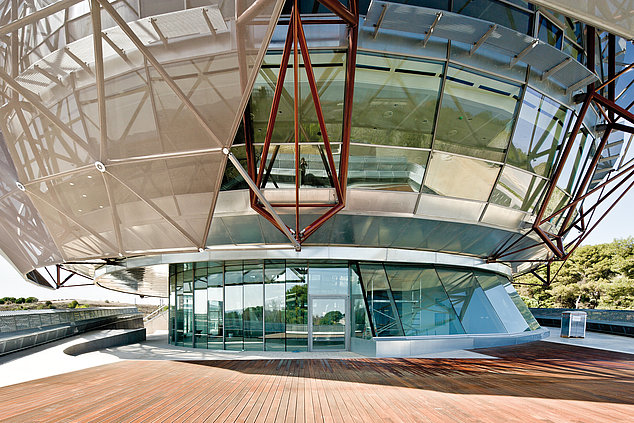

IGuzzini Illuminazione

ES-Barcelona

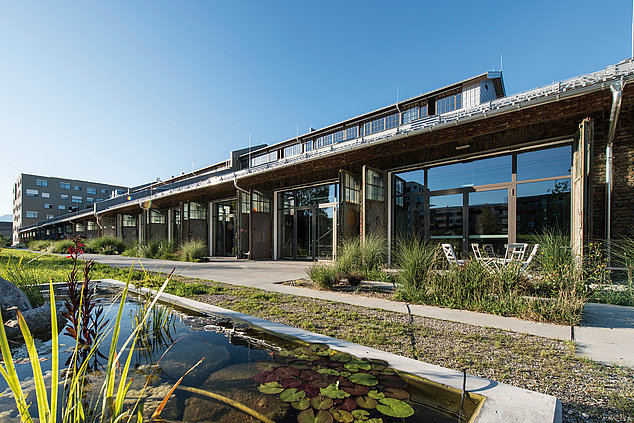

Armored hall Salzburg - Jansen AG

Armored hall Salzburg

AT-Salzburg
Shanghai Carl Zeisse R&D Center - Jansen AG

Shanghai Carl Zeisse R&D Center

CN-Shanghai
Steel Systems

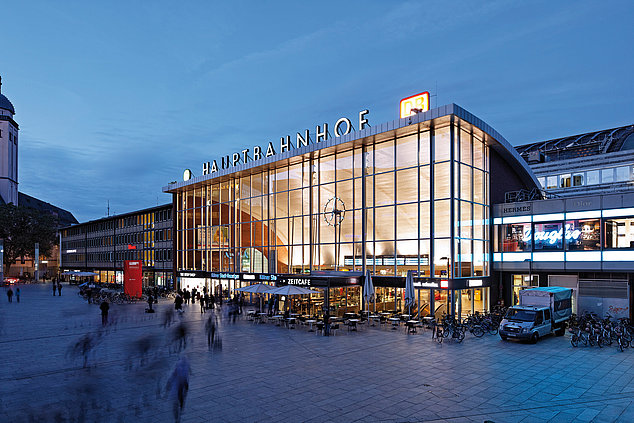

Cologne Train Station
